5.2 CONNECTIONS

The machine must have the following connections:

• Electrical

5.2.1 CONNECTING TO THE ELECTRICAL MAINS ON TT AND P107 PRESSES

5.2.1.1 STANDARD

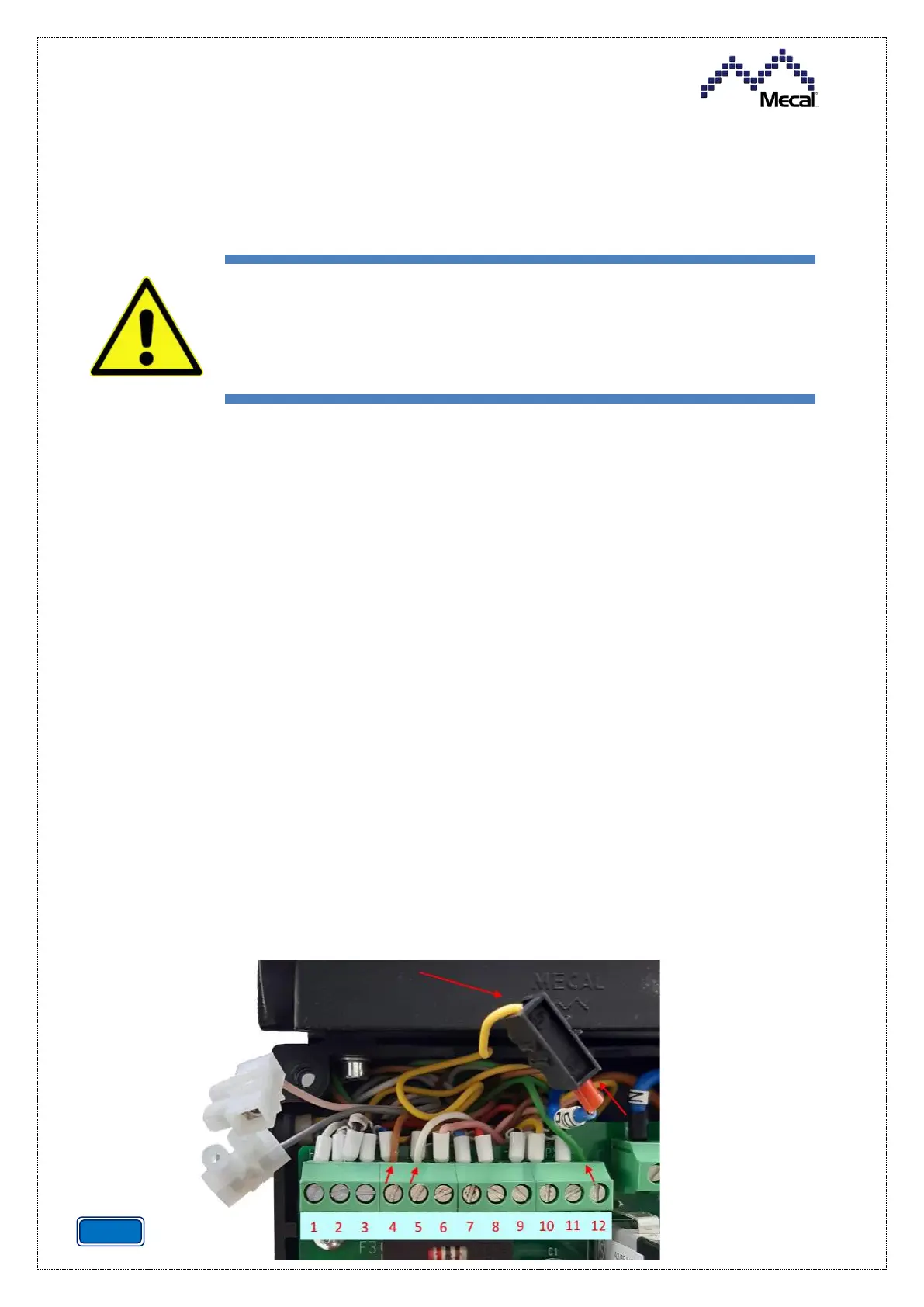

The operations to be carried out to connect the load cell electrically are:

• Check that the switch, located on the press or in the electrical cabinet/panel, is in the OFF (O)

position.

• Disconnect the press from the electrical mains.

• Open the electrical box of the press.

• Intercept the cables from the load cell: white, brown, yellow and green.

• Connect the brown cable to the pos.4 input [+18V] on the terminal board (combined with the

cable present).

• Connect the white cable to the pos.5 input on the terminal board (combined with the cable

present).

• Connect the green cable to the pos.12 input on the terminal board (combined with the cable

present).

• Connect the yellow cable to the black cable with PD indication by means of the supplied clamp.

• Close the electrical box with the screws.

• Connect the press to the electrical mains.

• Move the switch to the ON (I) position.

• Configure the load cell [see the relative paragraph].

HAZARD

Machine power supply connection operations must be carried out solely by

specialised personnel and are subject to use of personal protective

equipment
