CRIMP DATA ANALYZER
CDA10
REV.01
6.3 CONTROL AND SENSOR SYSTEMS

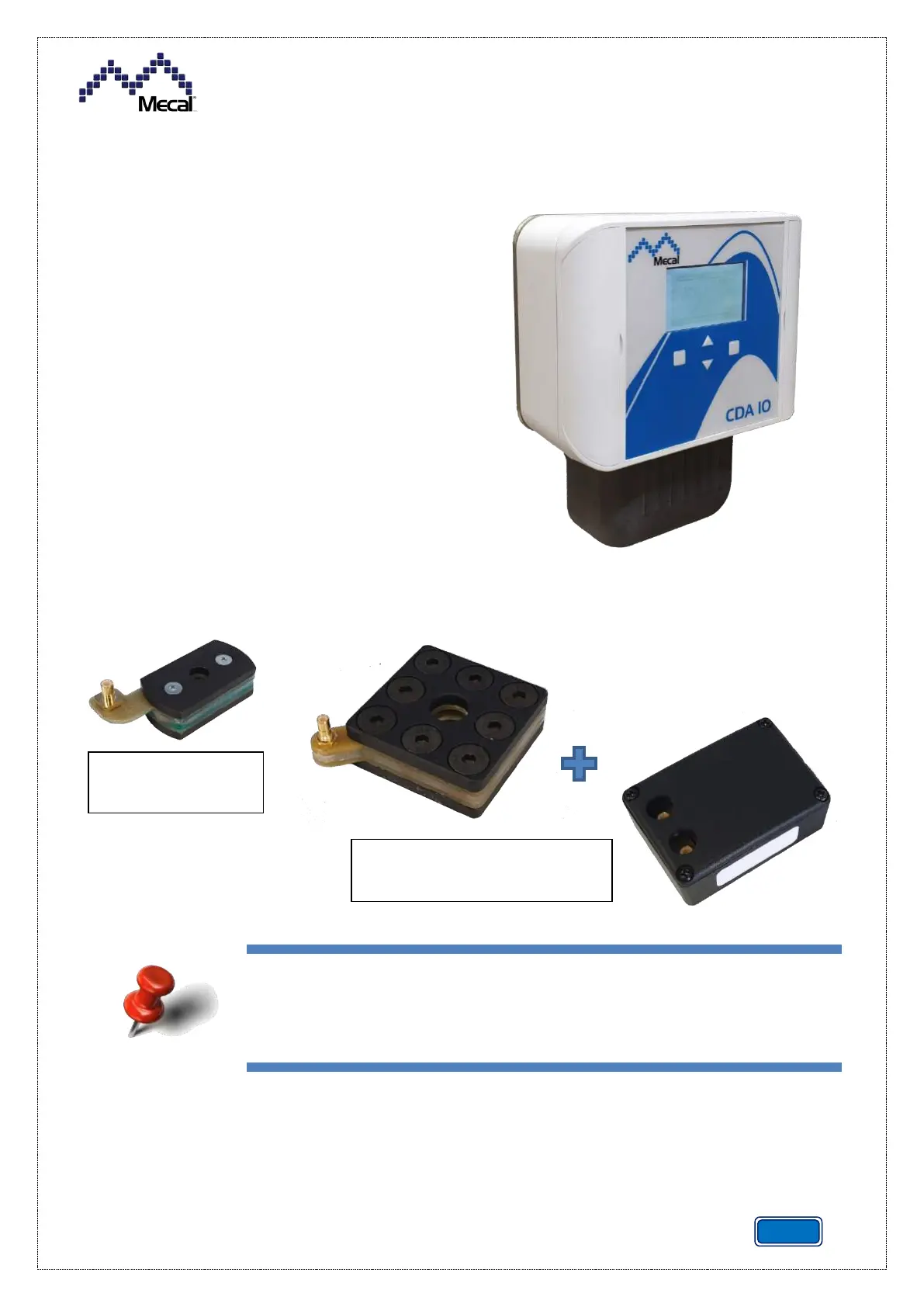

Below is the location of the control systems and of the sensors that are part of the equipment:
• Sensing and control unit
Equipped with a display to show the force curve
of the crimping and four front buttons for
choosing the settings and performing
configuration.
The unit disables the press if it detects failed
crimping.
• Load cell sensor
The sensor is chosen based on the maximum force the press can exert.
See the respective chapters for instructions on installing and adjusting the
sensing unit and sensor.
Sensor for TT and
P107 press models.
Sensor and amplifier for P040
and P080 press models.
