CRIMP DATA ANALYZER
CDA10
REV.01

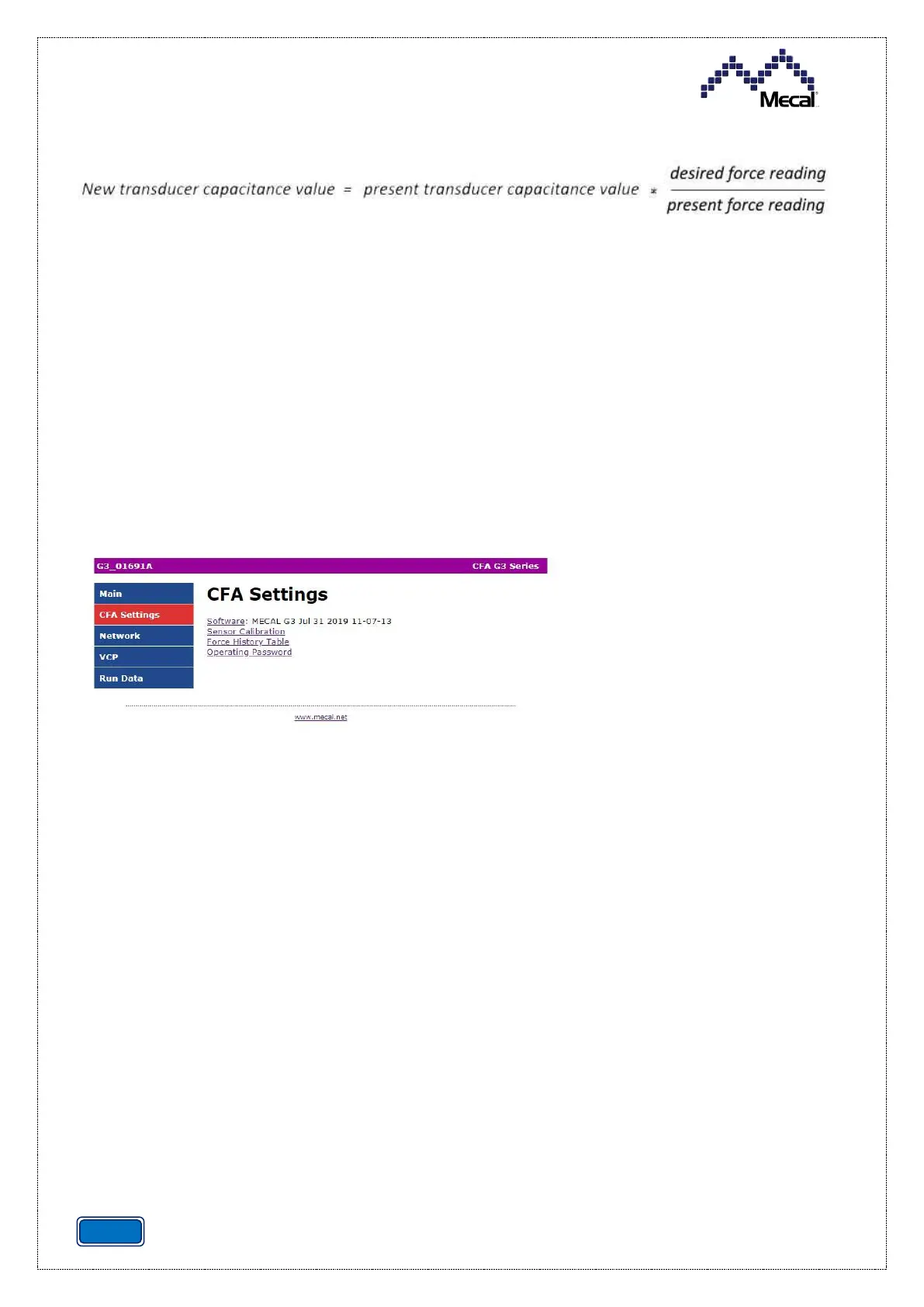

formula:
For example: If the display shows a peak force of 10kN but you want a displayed value of 8kN,
change the transducer capacity value as follows: 3162 * 8 / 10 = 2530
It is also possible to view or edit the calibration notes. To save changes made to the data on this
page, press the "Submit" button.
6.4.7 CRIMP FORCE DETECTION HISTORY
The "Force History Table" page shows the count of the forces detected by the controller. Follow this
procedure to access the screen:
1. Click on "Network” on the sidebar of the main web page to enter the “CFA Settings” menu and
click on the “Force History Table” link.
The table will then appear (see next page).
