Mecal CDA10 User Manual

CRIMP DATA ANALYZER
CDA10
REV.01
84

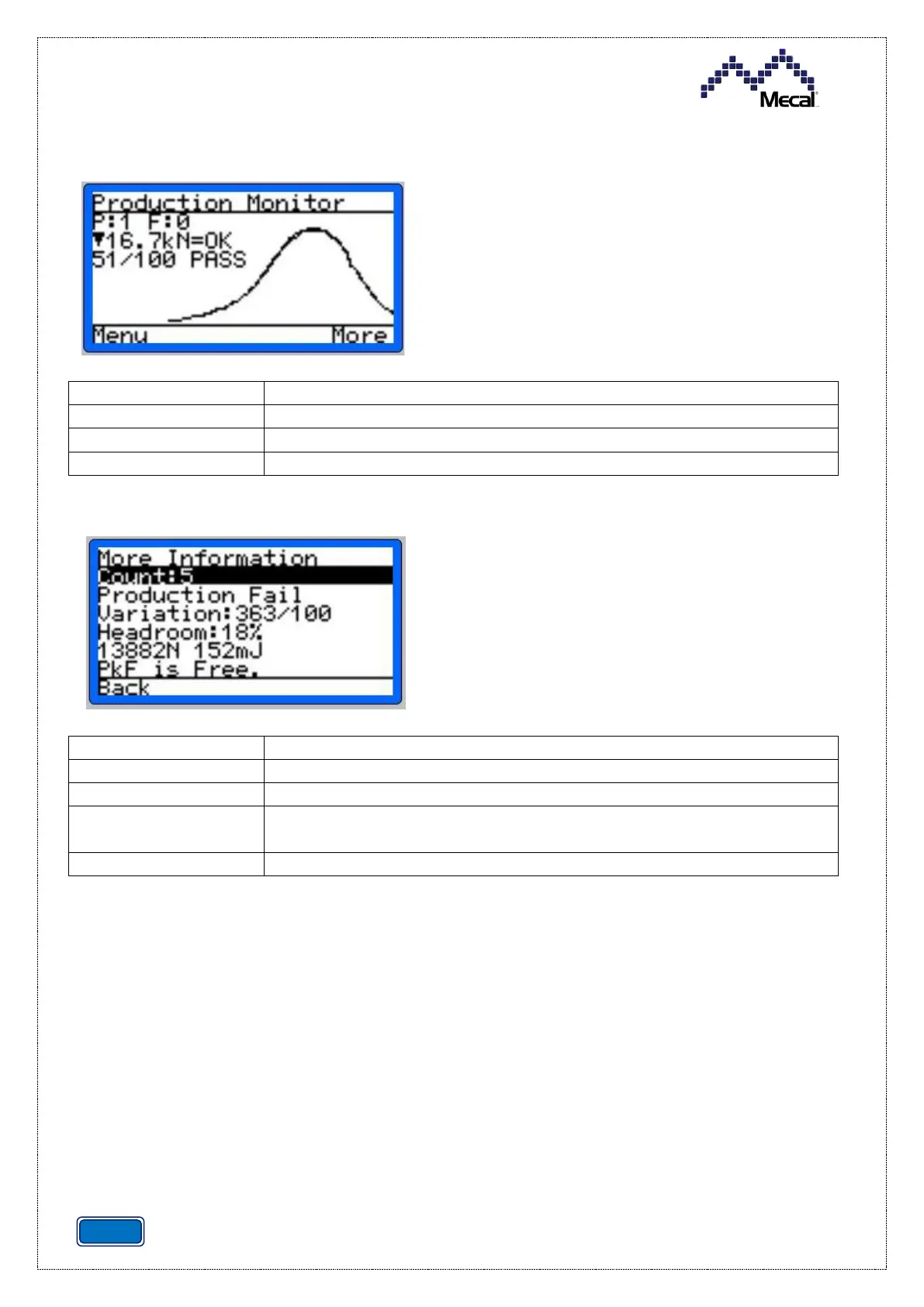

6.6.2 PRODUCTION
The main screen on the control unit display shows the force and reference curves.
The parameters shown are as follows:
P:1
CORRECT crimping (since last learning)
F:0
INCORRECT crimping (since last learning)
16.7kN=OK
Applied force measured and result [OK/NO]
51/100 PASS
Non-corresponding result (51) and tolerance limit (100)
Press the right [More] button to display the additional information.
Count: 5
Total performed crimping counter (5)
Production Pass/Fail
Status of last crimping Correct/Incorrect
Variation:363/100
Non-corresponding result (51) and tolerance limit (100)
Headroom:18%
Headroom (margin between nominal level and maximum manageable
value)
13882N 152mJ
Applied force and energy in the crimping
