CRIMP DATA ANALYZER

CDA10

REV.01

5.1.4 POSITIONING AND ASSEMBLING THE FORCE CELL SENSOR ON TT

AND P107 PRESSES

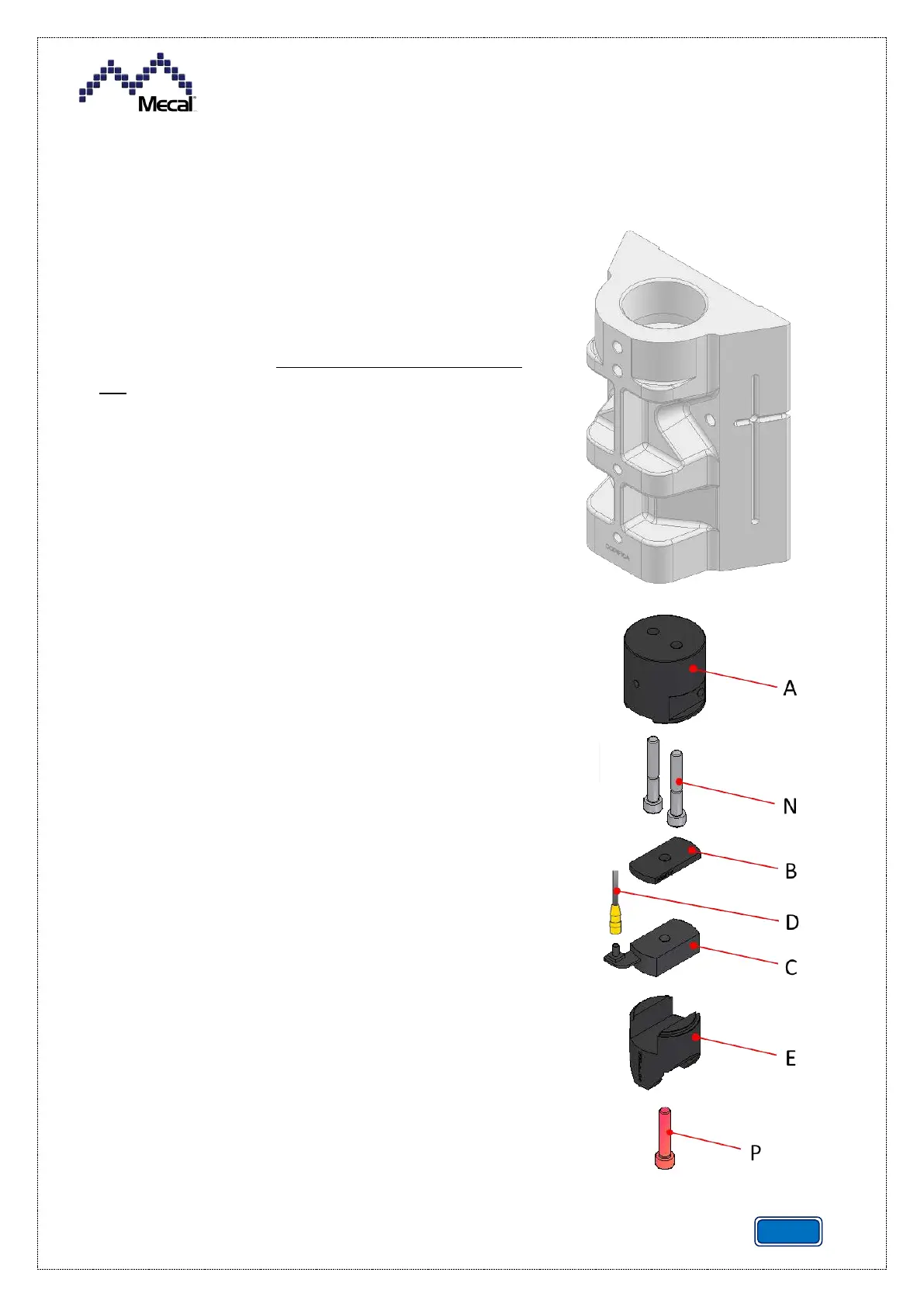

Follow the procedure below to install the load cell on press models TT and P107:

• Fit the T-connector support (A) with the two hex

socket head cap screws (N) on the press slide;

• Insert the load cell sensor (C), interposing the plate (B)

and locking it with the T-connector (E);

• Insert the hex socket head cap screw (P) and tighten it

with a torque wrench, setting a tightening torque of 7

Nm;

• Connect the plug (D) to the sensor.
