CRIMP DATA ANALYZER

CDA10

REV.01

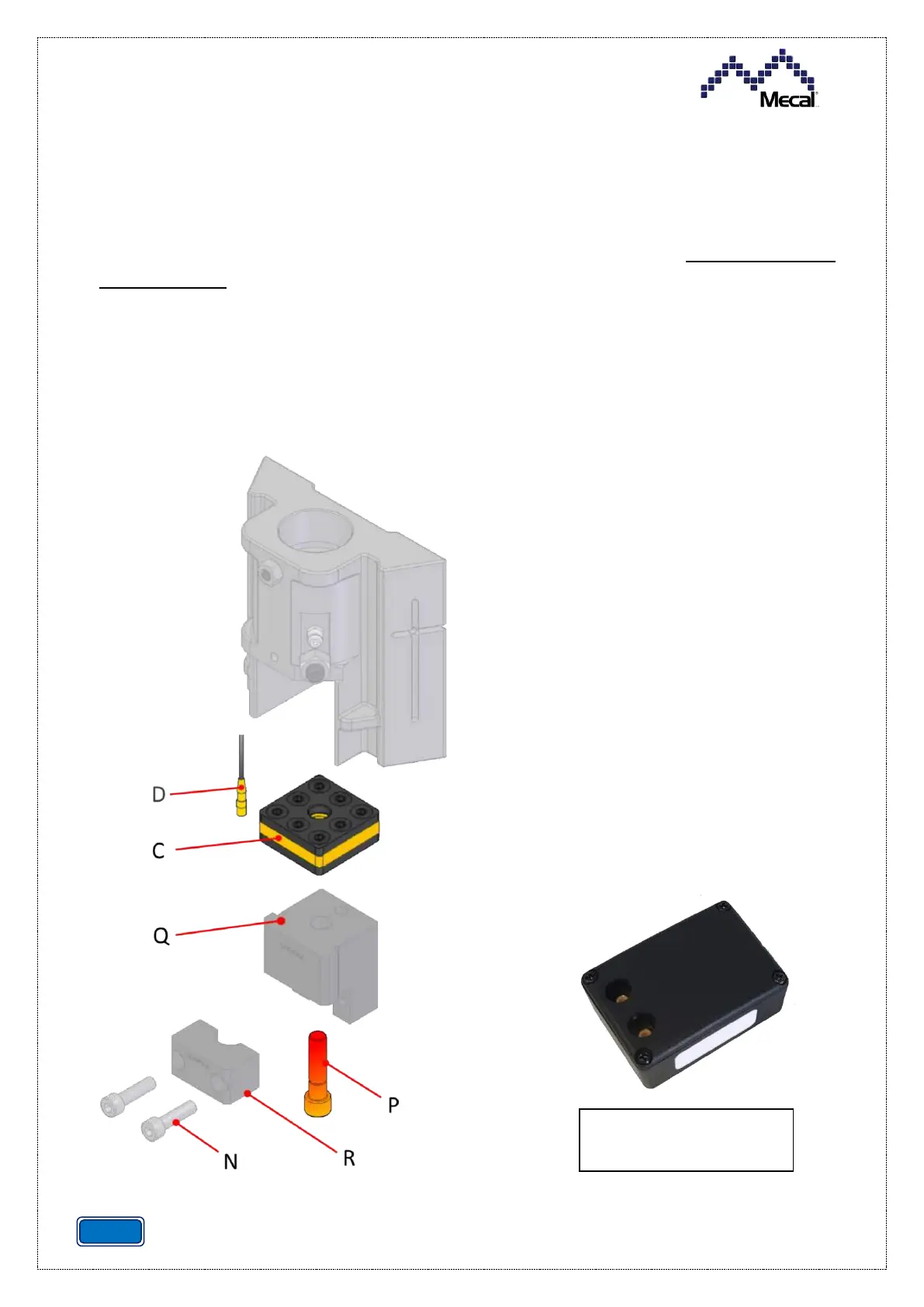

5.1.5 POSITIONING AND ASSEMBLING THE FORCE CELL SENSOR ON P040

AND P080 PRESSES

Follow the procedure below to install the load cell on press models P040 and P080:

• Insert the load cell sensor (C) between the press slide and the shank connection (Q);

• Insert the hex socket head cap screw (P) and tighten it with a torque wrench, setting a tightening

torque of 40 Nm;

• Position the collar (R) of the shank connector (Q) and secure it with two hex socket head cap

screws (N).

• Connect the plug (D) to the sensor and to the amplifier.

• Connect the plug to the amplifier and to the control unit.

• Position the amplifier inside the electrical box of the press.

Amplifier for P040 e

P080 presses
