CRIMP DATA ANALYZER
CDA10
REV.01
3.3.3 FORCE CELL SENSOR
The piezoelectric sensor
converts the force applied by
the press in an electrical
signal which is read and
monitored by the control
unit.

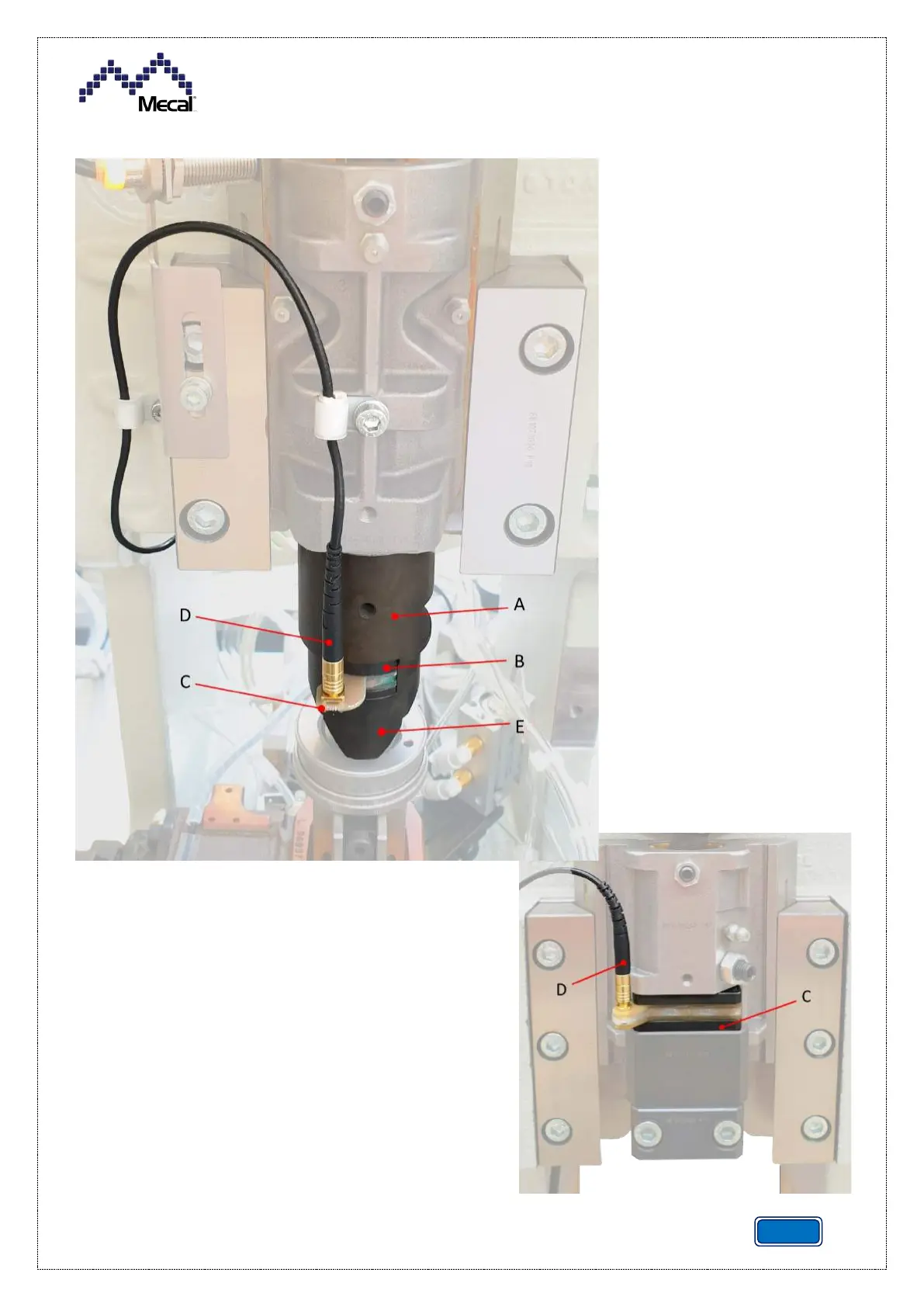

On model TT and P107
presses, the cell sensor (C)
and the spacer plate (B) are
placed between the support
(A), screwed to the press
slide, and the "T"-connector
(E).
The sensor cable (D) is fixed
with clips to the slide and to
the press frame.
On model P040 and P080 presses, the sensor (C) is
placed between the slide and the shank connection.
The sensor cable (D) is fixed with clips to the press
frame.
Only on these press models, an amplifier must be
inserted between the sensor and the control unit.
