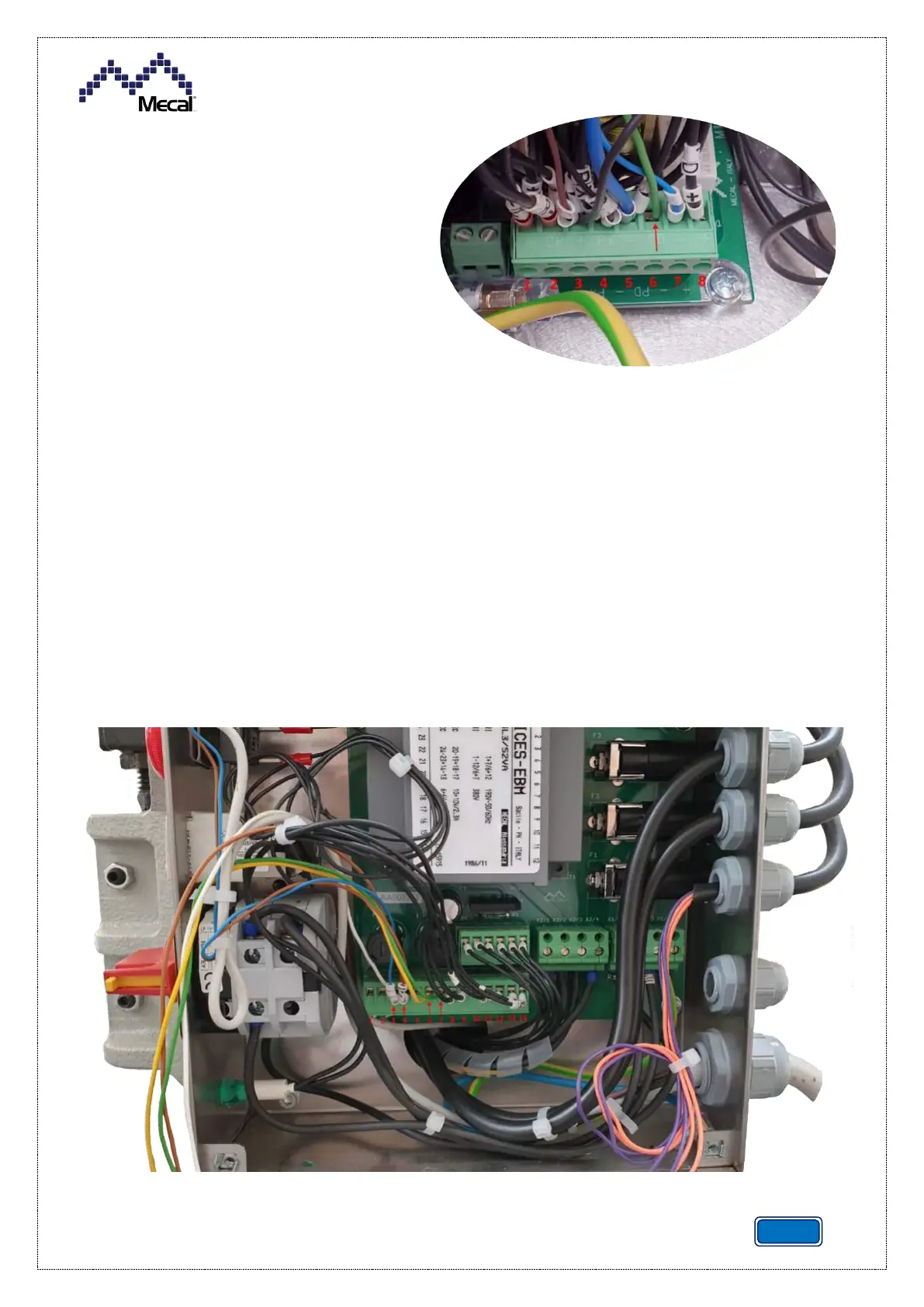

• Eliminate clamp by the green cable and connect it to the

pos.6 input on the terminal board [located on

the right side, seen from the rear, in the

electrical box of the press];

• Close the electrical box housing

compartment with the screws;

• Connect the press to the electrical mains;

• Move the switch to the ON (I) position;

• Configure the load cell [see the relative

paragraph].

5.2.3 CONNECTING TO THE ELECTRICAL MAINS ON P080 & P120 PRESSES

The operations to be carried out to connect the load cell electrically are:

• Check that the switch, located on the press or in the electrical cabinet/panel, is in the OFF (O)

position;

• Disconnect the press from the electrical mains;

• Open the electrical box of the press;

• Intercept the cables from the load cell: white, brown, yellow and green;

• Connect the white cable to the pos.3 input on the terminal board (combined with the cable

already present);

• Connect the brown cable to the pos.4 input on the terminal board (combined with the cable

present);
