Mercury 30 Service Manual

4-28 - POWERHEAD 90-826148R2 MARCH 1997

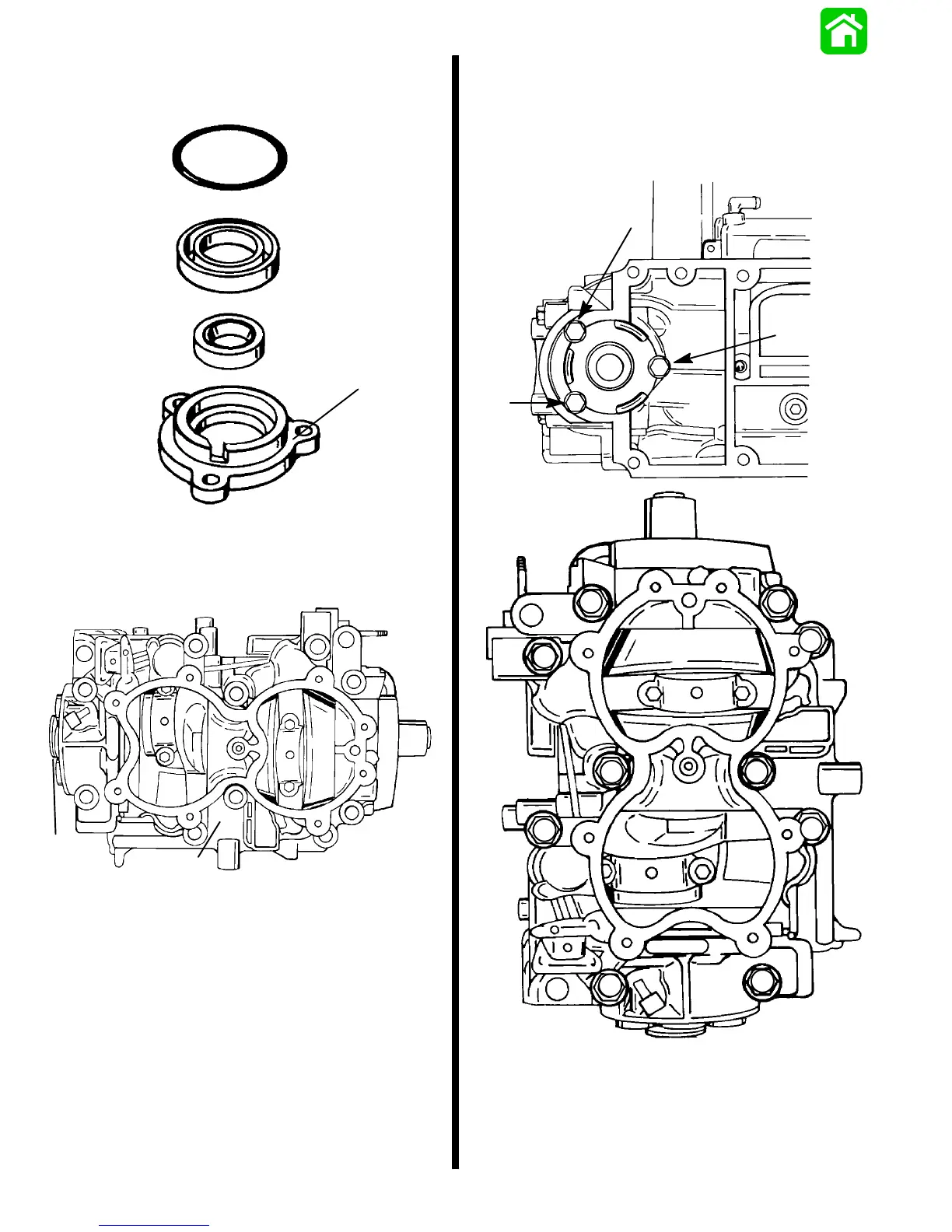

3. Install end cap assembly (lubricate seals with
2-cycleengine oil)toblock. ApplyPerfect Seal to
flange of end cap (a).
52651
a
a - End Cap Flange
4. Place crankcase cover onto block.
52889
b
a
a - Crankcase Cover
b - End Cap
5. Insert clean bolts and finger tighten.
IMPORTANT: Torque crank case cover bolts
FIRST before torquing end cap cover bolts.
6. Torqueboltsto16.5lb.ft.(22.4N·m)followingse-
quence shown below.
52884
1
3
2
12
34
5
6
7
8
9
10
52894
NOTE: Inspect all hoses on reinstallation. Replace if
necessary.
