Mercury 30 Service Manual

2B-18 - ELECTRICAL 90-826148R2 MARCH 1997
Installation
1. Secure starter to block with three (3) bolts.
Torque bolts to 16.6 lb. ft. (22.5 N·m). Secure
NEGATIVE battery lead to block with bottom bolt.
2. Connect battery lead (BLACK w/YELLOW
sleeve) to starter. Torque attaching nut to 60 lb.
in. (6.8 N·m).

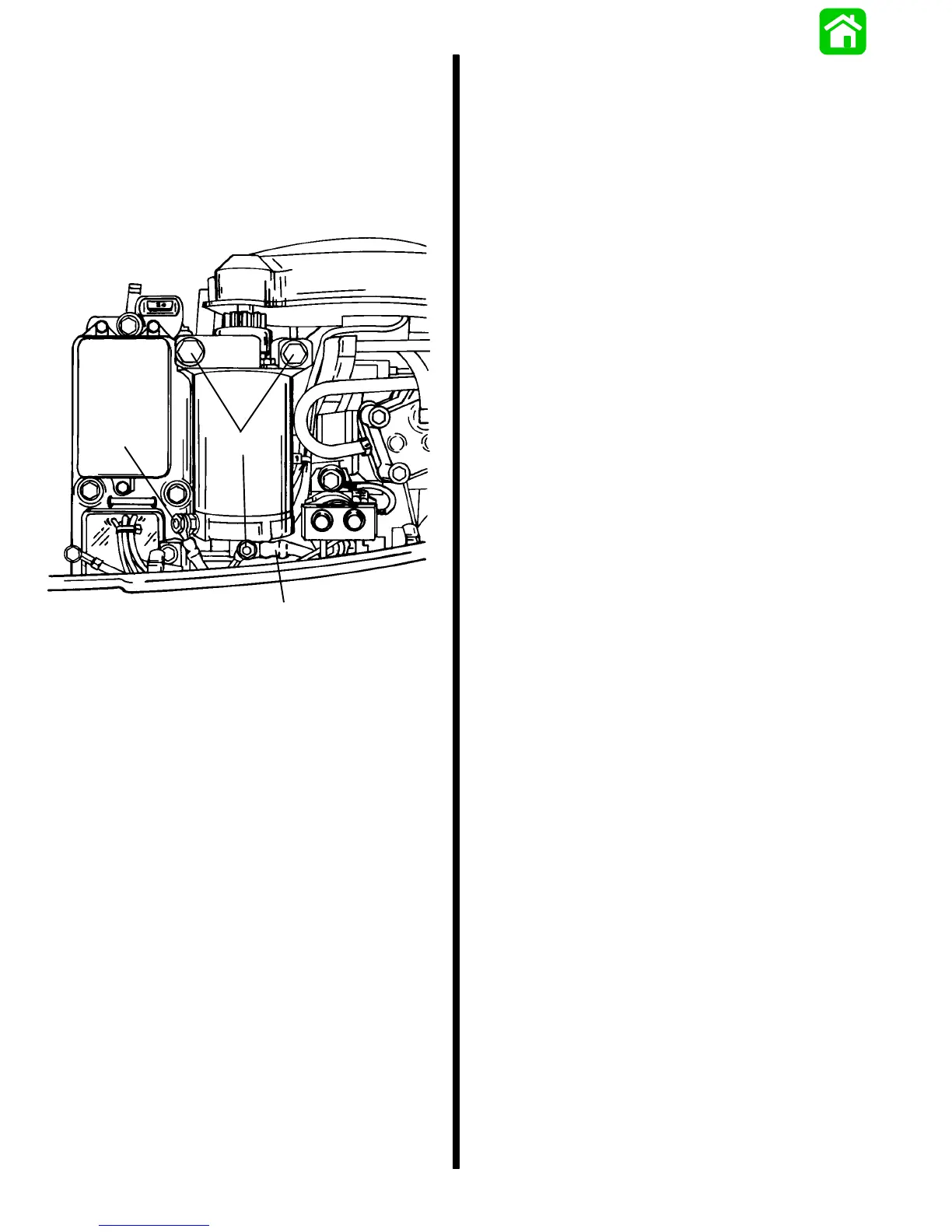

52669
ab
c
a - Bolts (3)
b - Black Cable (w/YELLOW sleeve)
c - Black Cable (Negative Battery Lead)

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
