SERVICE MANUAL NUMBER 22
STERNDRIVE (MCM) MODELS
Page 2A-24 90-860074--1 FEBRUARY 2002

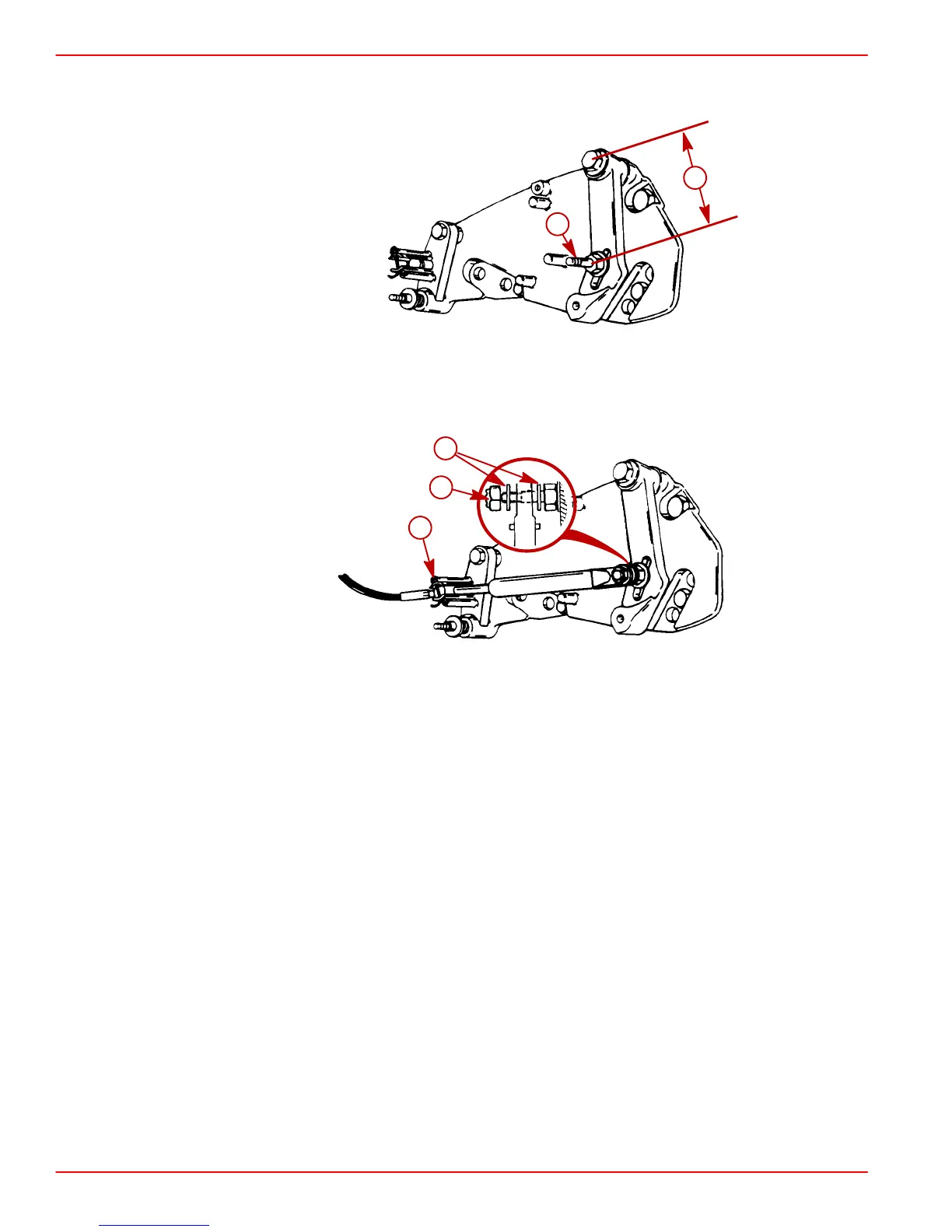

2. Install shift cable into remote control. Refer to appropriate remote control instructions.
3. Loosen stud and move it to dimension as shown. Re-tighten stud.
23345
a
b
a-Stud
b-76 mm (3 in.) - Center of Pivot Bolt to Center of Stud
4. Install drive unit shift cable. Tighten locknut until it contacts end guide, then loosen 1/2
turn. Insert cotter pin from the top and spread both ends.
23345
a
b
c
a-Washers (2)
b-Locknut
c-Cotter Pin
