ENGINE MECHANICAL

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 3A-77

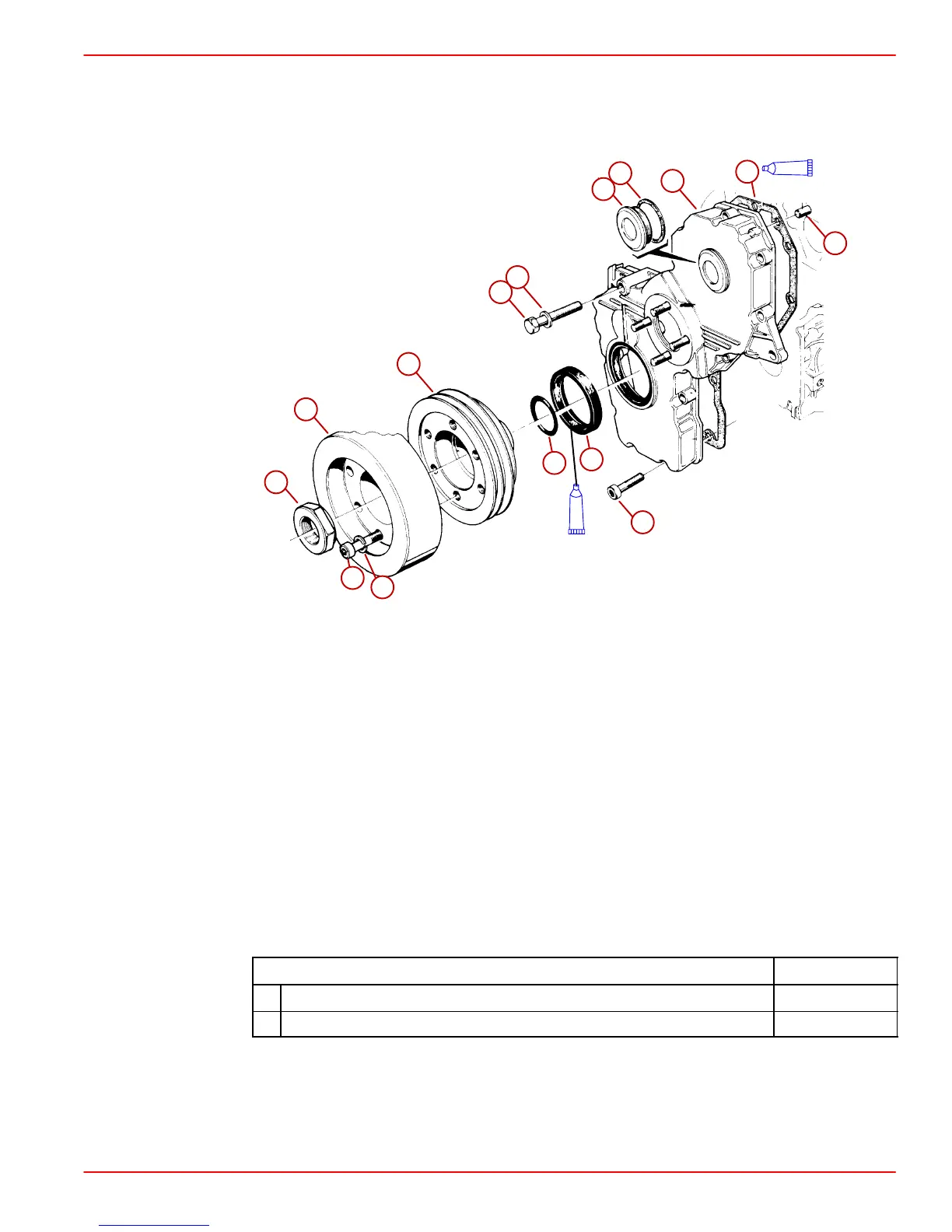

Timing Gear Cover

Exploded View

73778

1-Cover

2-Gasket

3-Pin (2)

4-Cover

5-Washer

6-Screw (1)

7-Washer (1)

8-Screw (13)

9-Seal (Apply Oil to Inner Lips of Seal Upon Installation)

10 - O-ring

11 - Crankshaft Pulley

12 - Vibration Damper

13 - Nut

14 - Screw (6)

15 - Lockwasher (6)

Description

Part Number

A Loctite Master Gasket 92-12564-2

B Clean SAE 30W engine Oil Obtain Locally
