SEAWATER COOLING SYSTEM
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 6A-35
Engine Oil Cooler
REMOVAL
NOTICE
Refer to Cold Weather or Extended Storage, Draining Instructions in SECTION 1B and
Precautions in this section, BEFORE proceeding.
1. Drain the seawater system.
2. Drain the closed cooling system.
3. Obtain clean, suitable devices and plug hoses in following instructions to avoid loss of
engine oil.
4. Mark port and starboard oil hoses to aid in reassembly.
5. Disconnect oil lines from oil cooler fittings (near each end of oil cooler) on heat
exchanger. Quickly plug the lines.
NOTE: Components shown removed for visual clarity.
b
a
c

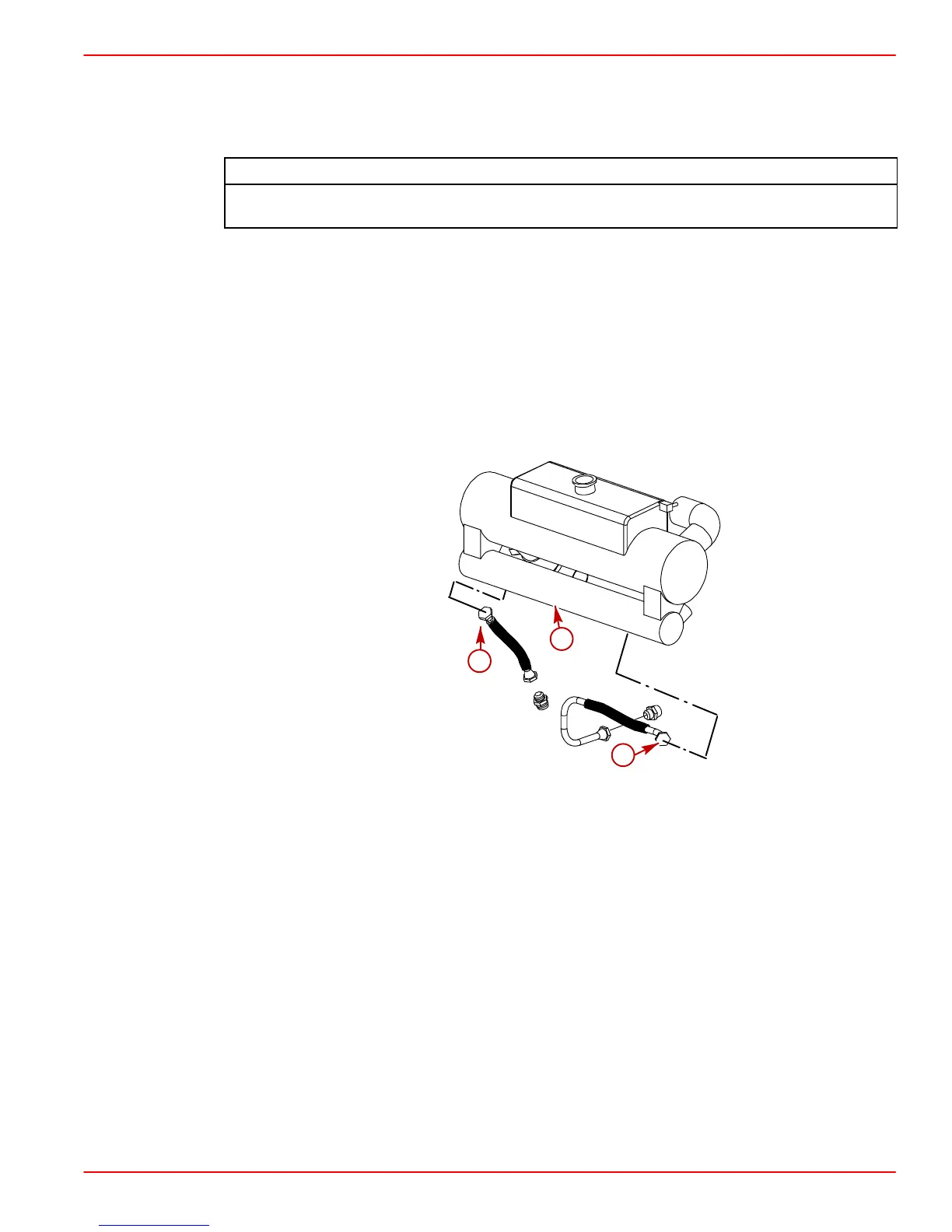

a-Engine Oil Cooler / Heat Exchanger
b-Starboard Oil Line and Fitting
c-Port Oil Line and Fitting
To Next Page
