STARTING SYSTEM
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 4A-7
Removal
Starter Motor
WARNING
Always disconnect battery cables from battery before working around electrical
system components to prevent injury to yourself or damage to electrical system.
1. Disconnect battery cables from battery.
2. Disconnect wires from starter.
3. Remove starter mounting nuts and lockwashers.
4. Pull starter motor away from flywheel and remove from engine.
70810
a
b
c
d

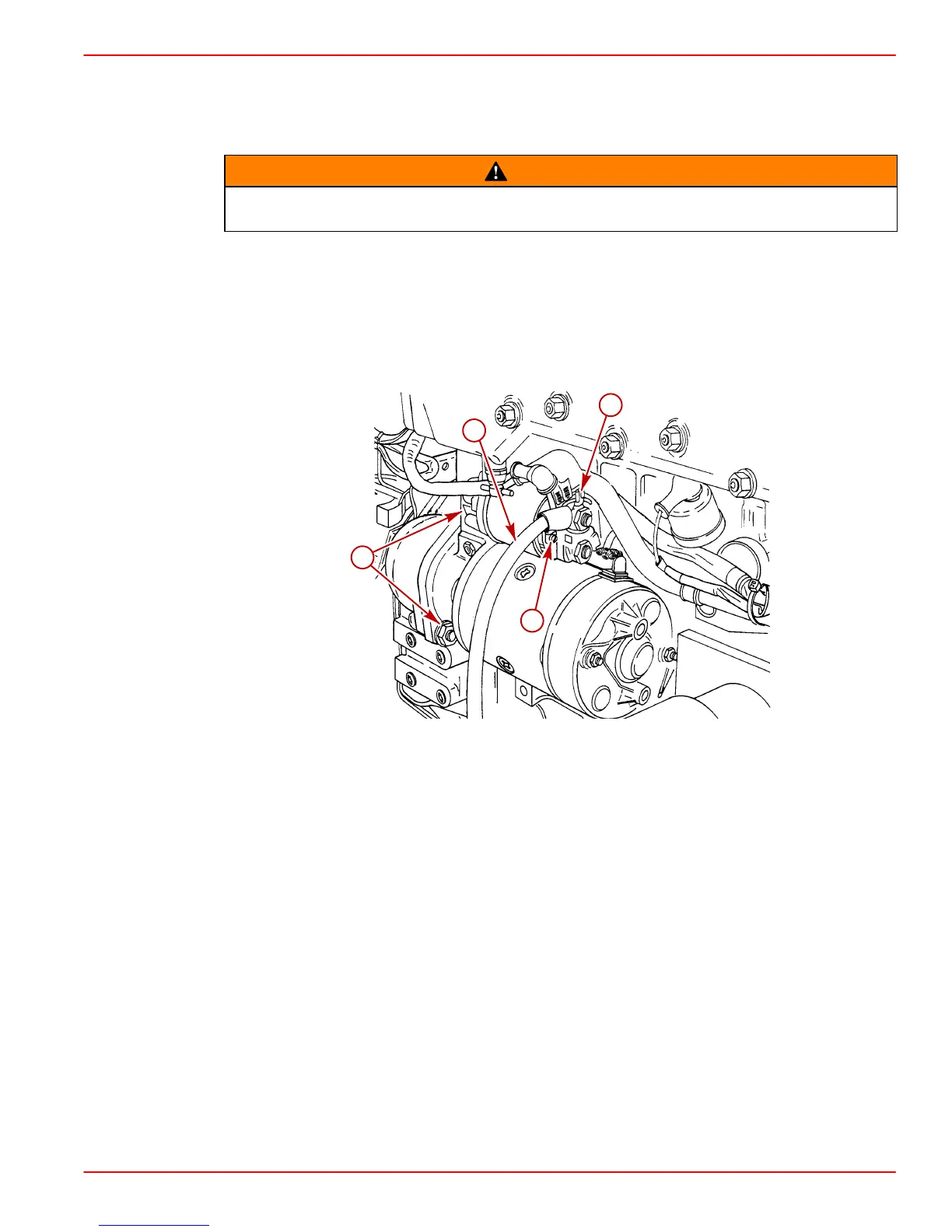

a-Battery Cable
b-RED Wire
c-YELLOW/RED Solenoid Wire
d-Mounting Nuts with Lockwashers (2 Total, One Not Shown)
