ECM (Electronic Control Module)
NOTICE
Refer to Service Precautions, in Repair Procedures, BEFORE proceeding.
IMPORTANT: The ECM is a sensitive electrical device, subject to electrostatic
damage. Therefore, take care not to touch connector pins when removing, cleaning
or installing the module.
IMPORTANT: An ECM with derated calibration is used for the D4.2L D-tronic in order
to meet Bodensee emission requirements in twin-installations. Ensure any
replacement ECM is the correct part.
REMOVAL
1. Slide the locking top of the connector aside and disconnect the 68 pin electrical connec-
tor from the engine control module (ECM).
2. Remove ECM from electrical bracket. Retain hardware.
NOTE: A taller ECM bracket is used on D-Tronic engines with V-Drive Transmissions.

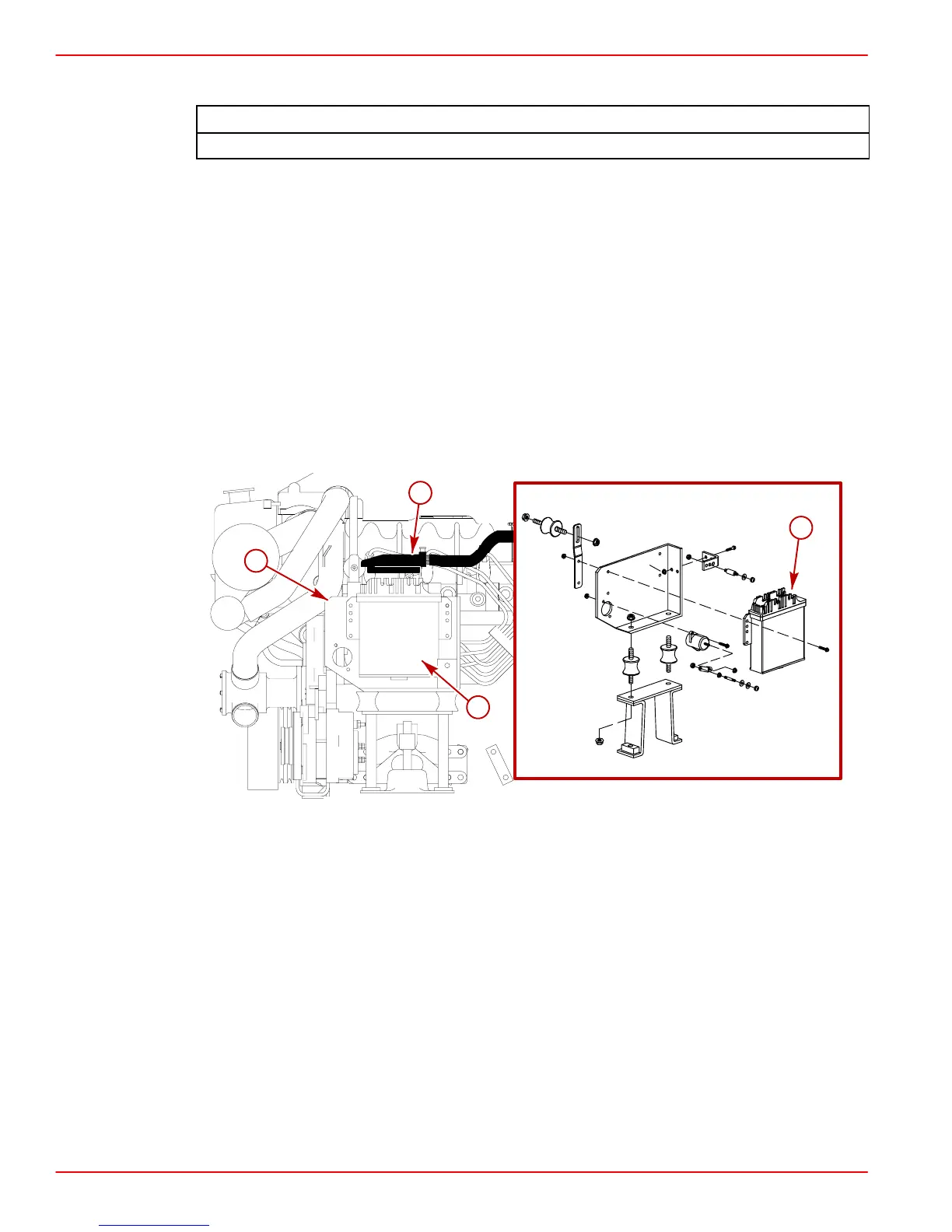

75298
a
b
c
78385
b
Typical
a-Electrical Bracket
b-ECM
c-68 Pin Electrical Connector
CLEANING
1. Clean the exterior of the ECM with a dry cloth being careful to avoid contact with connec-
tor pins.
2. Clean ECM mountig bracket to assure ground (–) contact.
