MANIFOLDS, ELBOWS AND RISERS SERVICE MANUAL NUMBER 22
Page 7B-6 90-860074--1 FEBRUARY 2002

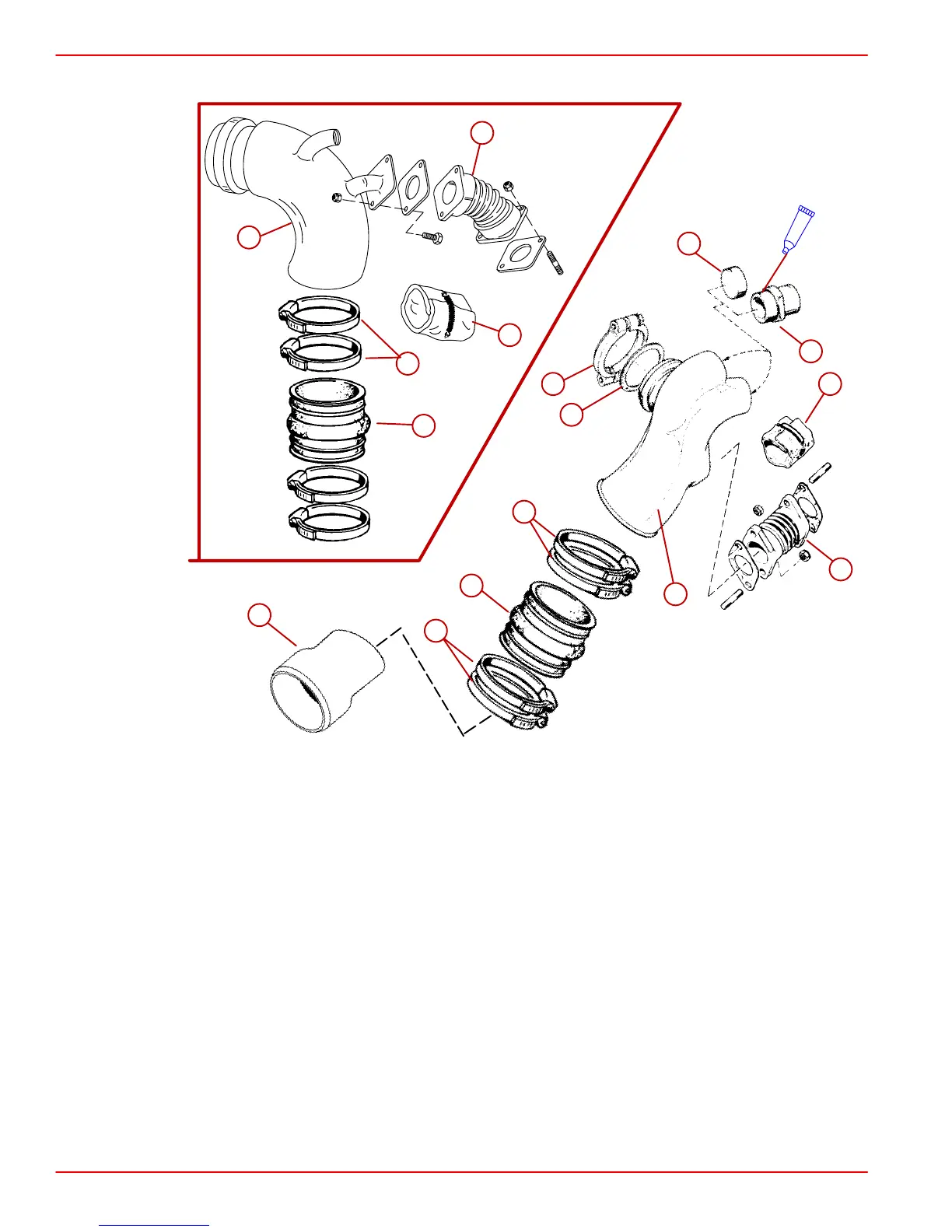

Inboard (MIE) Exhaust Systems
73942
70902
1
2
3
4
5
6
7
6
8
7
6
9
10
11
12
12
1-Exhaust Elbow (Design 1)
2-Connector
3-Plug
4-Clamp
5-Gasket
6-Hose Clamps
7-Short Exhaust Hose (If Equipped)
8-Exhaust Pipe Oval-To-Round Adapter (If Equipped)
9-Wastegate Exhaust Pipe, Gaskets And Hardware
10 - Exhaust Elbow (Design 2)
11 - Wastegate Exhaust Pipe, Gaskets And Hardware
12 - Heat Shield Blanket
13 - Exhaust Probe Hole
14 - Round To Round Adapter, If Equipped
