MAINTENANCE SERVICE MANUAL NUMBER 22
Page 1B-50 90-860074--1 FEBRUARY 2002
Power Trim
Checking Fluid Level
1. Place sterndrive unit in full DOWN/IN position.
IMPORTANT: Some trim pump reservoir fill caps have a small vent hole. Occasionally
ensure vent is not restricted.
2. Unscrew reservoir cap.
3. Remove and discard cap plug if present.
76631
73183
b
a

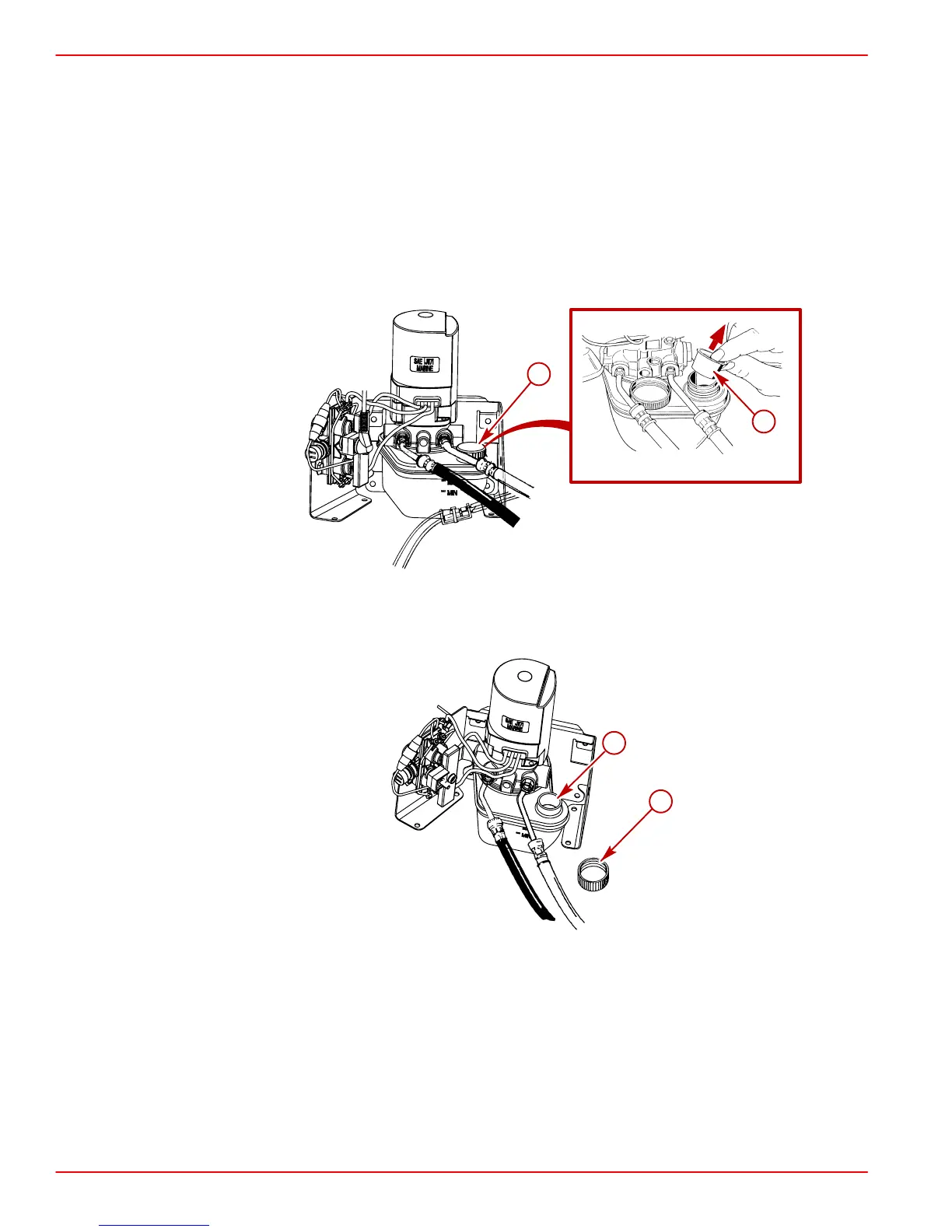

a-Reservoir Cap
b-Cap Plug
4. Observe oil level. Level must be up to, but not over, bottom edge of reservoir fill neck.
77348
b
a
a-Reservoir Fill Neck
b-Reservoir Cap
