MAINTENANCE SERVICE MANUAL NUMBER 22
Page 1B-14 90-860074--1 FEBRUARY 2002
Front View
1
10
11
12
13
14
2
3
4
5
6
7
8
9
15
16
78310

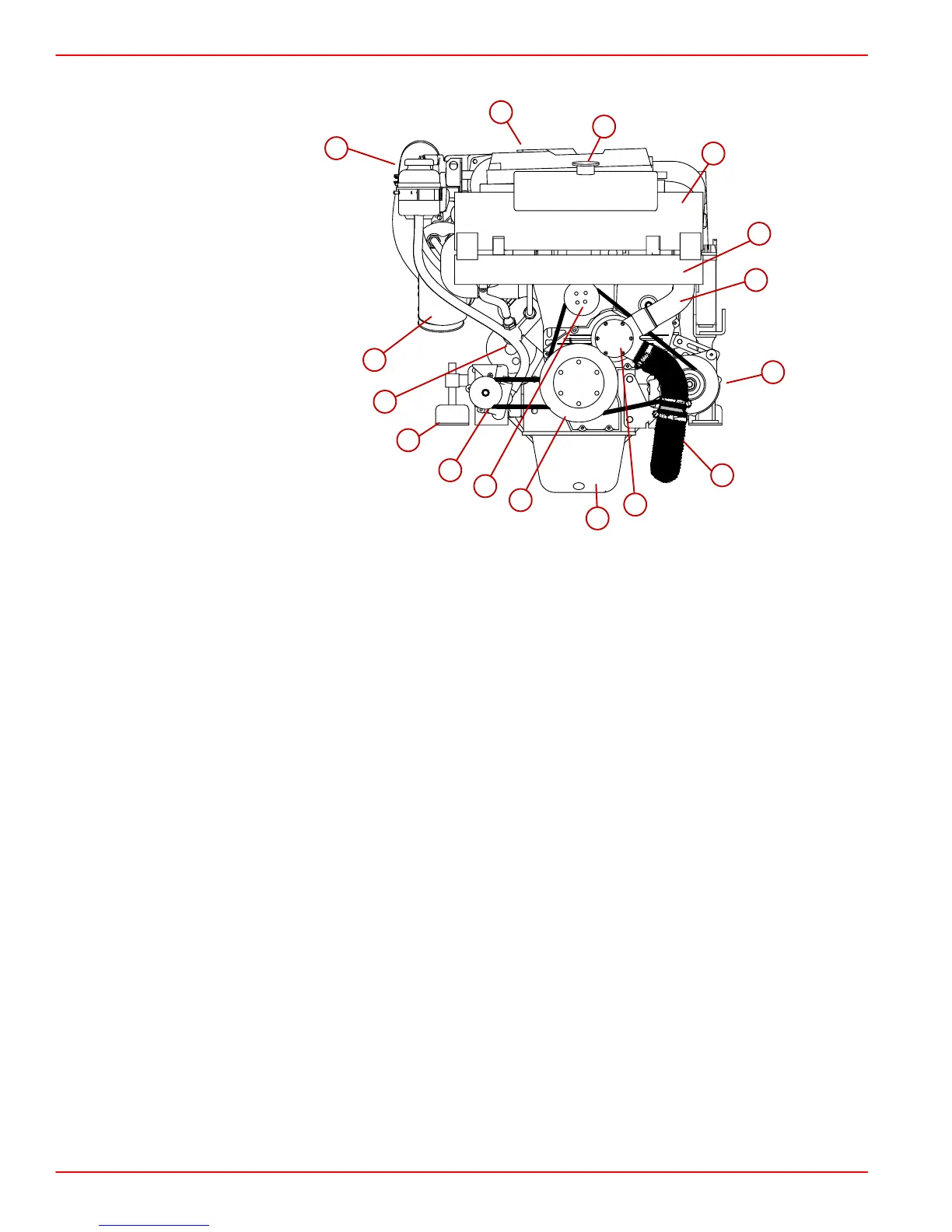

Typical In-Line D-Tronic Diesel
1-Sacrificial Anode
2-Pressure Cap
3-Heat Exchanger
4-Engine Oil Cooler
5-Seawater Pump Outlet Hose
6-Alternator
7-Seawater Pump Inlet Hose
8-Seawater Pump
9-Oil Pan
10 - Crankshaft Pulley
11 - Engine Water Circulating Pump Pulley
12 - Power Steering Pump
13 - Front Engine Mount
14 - Oil Thermostat
15 - Oil Filter
16 - Exhaust Elbow
To Next Page
