Shift Control And Cables
Transmission Shift Lever And Shift Cable Bracket

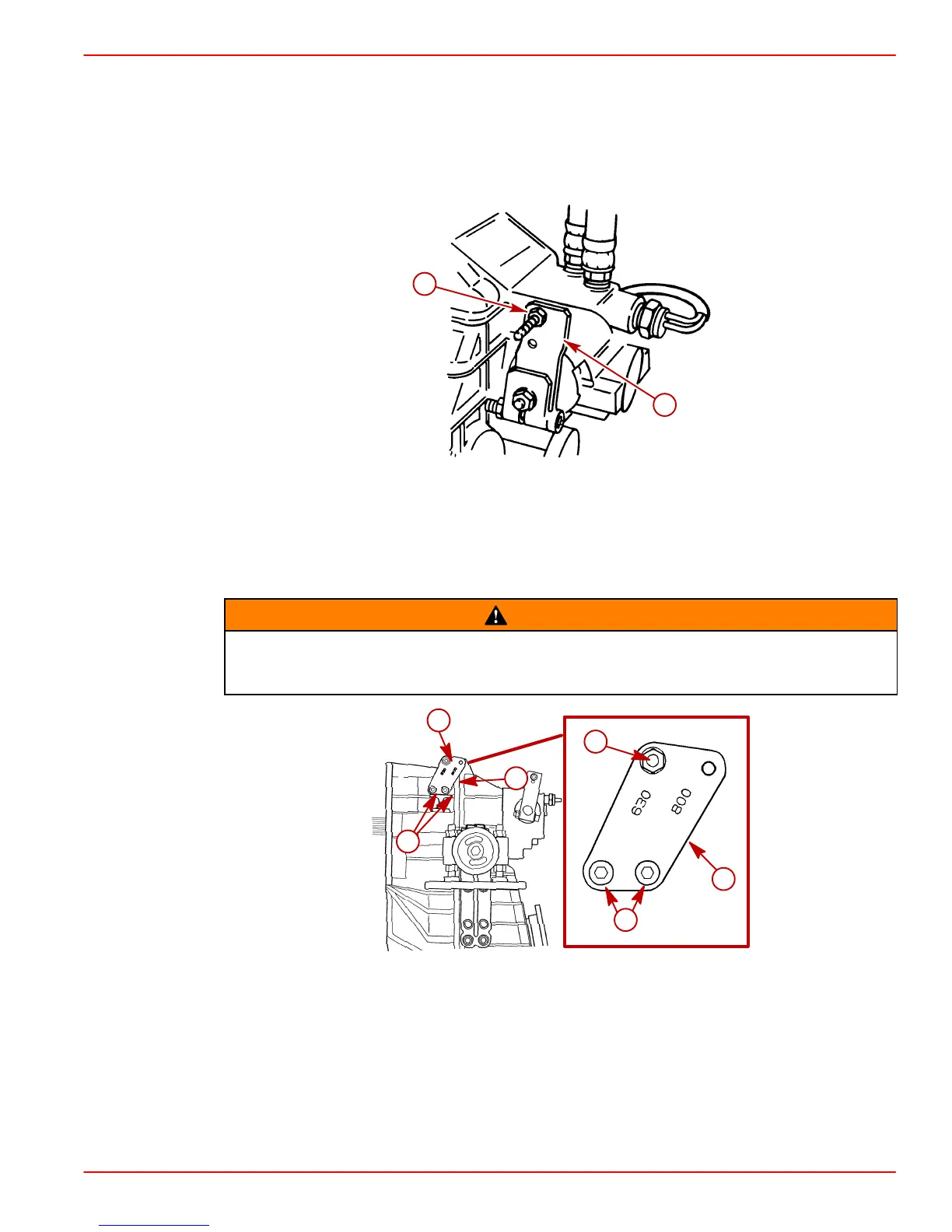

1. The shift lever has two holes as illustrated. Ensure that the shift cable anchor stud is
installed in the top hole when using Quicksilver Remote Control cables.
77520
a
b
a-Shift Lever
b-Shift Cable Anchor Stud Location (For Quicksilver Shift Cables)
2. On bracket with two anchor location holes: Ensure that anchor stud is installed in
the hole marked “630.”
WARNING
Avoid serious personal injury or property damage caused by improper shifting.
Anchor stud for shift cable must be installed in the correct hole when using bracket
with two anchor location holes.
71020
71041
a
a
b
b
c
c
Shift Cable Bracket - Anchor Stud Position Shown for 630 Transmission
a-Shift Cable Bracket
b-Shift Cable Anchor Stud
c-Bracket To Transmission Fasteners
