MANIFOLDS, ELBOWS AND RISERS SERVICE MANUAL NUMBER 22
Page 7B-4 90-860074--1 FEBRUARY 2002
Exploded Views

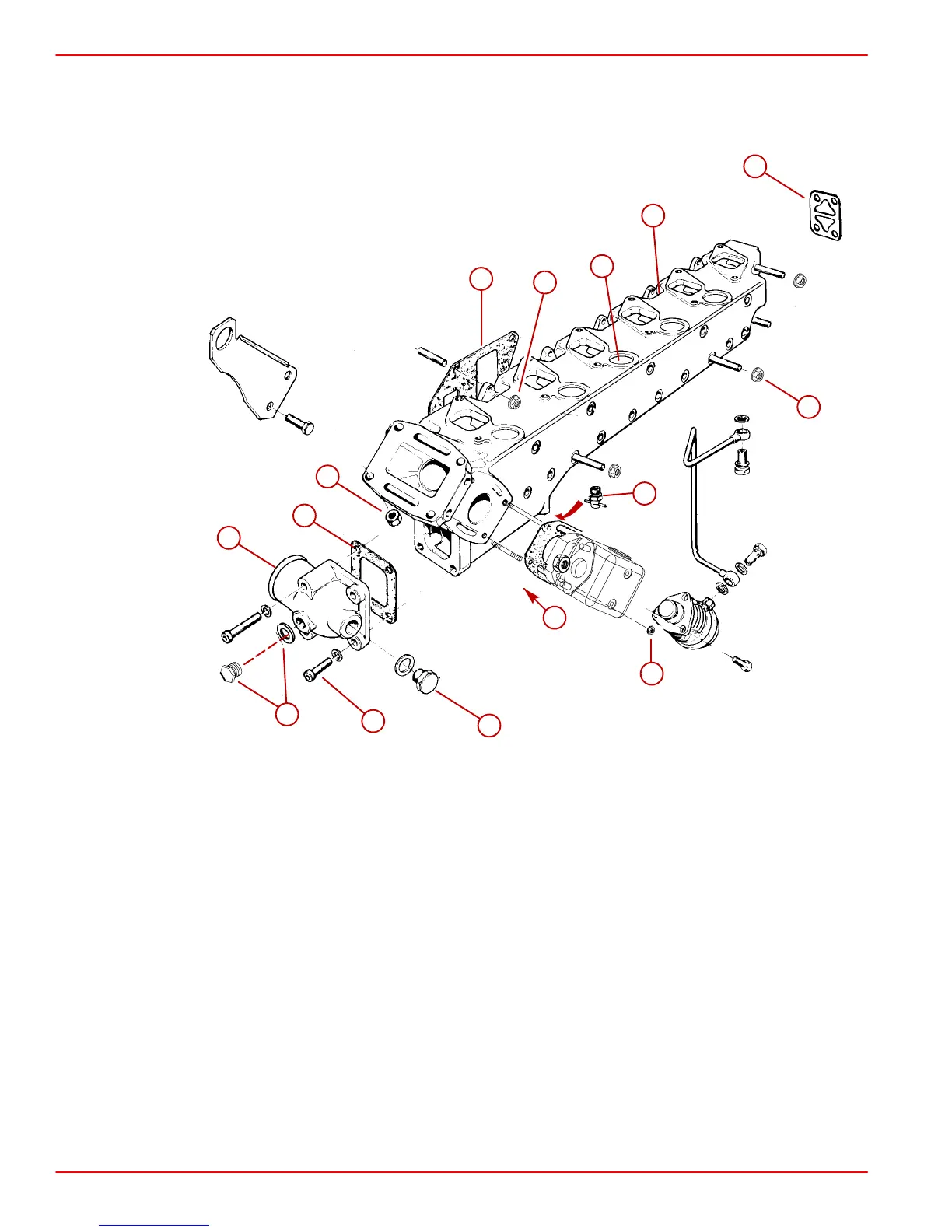

Typical Intake / Exhaust Manifold
28085
2
5
3
4
6
9
8
12
1
4
7
11
13
11
10
1-Intake / Exhaust Manifold, With Wastegate Flange
2-Stud
3-Welch Plug
4-Gasket(s)
5-Drain Valve
6-Plug With Washer
7-Cover
8-Plug With Washer, If Equipped
9-Cover Screw With Lock Washer
10 - Nut
11 - Flange Nut
12 - Gasket
13 - Turbocharger Flange Nut
