Special Tools (continued)
Description Part Number
Cylinder Head Service Tool Kit
(For Special Cylinder Head Bolts)
5
806563A1
5
: Refer to the following special information about modification of this tool.

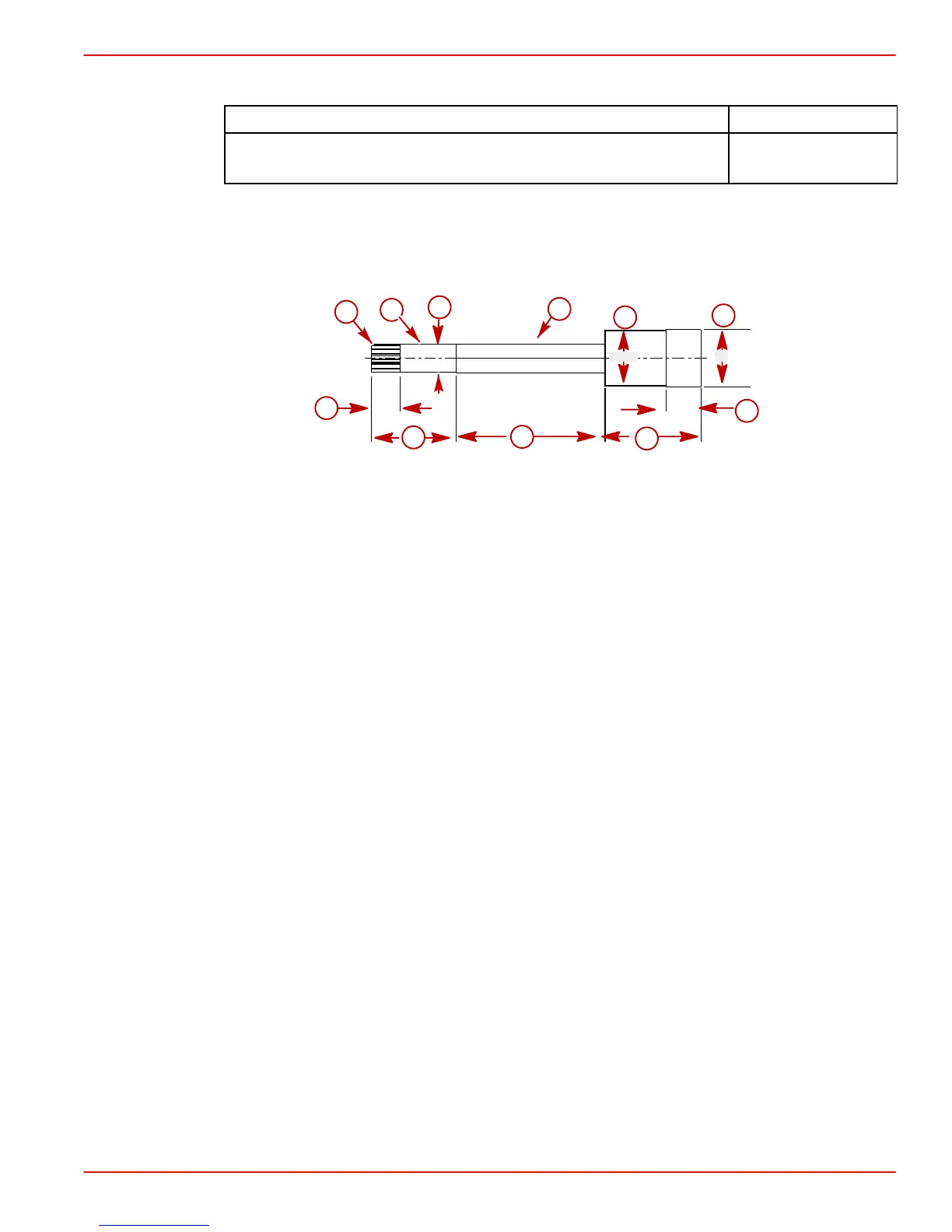

NOTE: The 12 mm Triple Square special tool for cylinder head torque can be modified to
allow the oil feed line to the rocker arms to remain installed during retorque of the cylinder
heads.
76067
a
b
d
e
f
g
h
i
k
j
c
a-12 Point Triple Square
b-Modified Area
c-12.8 mm (0.50 in.) Across Flats Hex
d-12.8 mm (0.50 in.)
e-11.9 mm (0.47 in.)
f-37.6 mm (1.48 in.)
g-66.6 mm (2.62 in.)
h-24.4 mm (0.96 in.)
i-25.2 mm (0.99 in.)
j-15.2 mm (0.60 in.)
k-42.7 mm (1.68 in.)
