EDI DIAGNOSIS SERVICE MANUAL NUMBER 22
Page 5E-58 90-860074--1 FEBRUARY 2002
MIL [Malfunction Indicator Lamp (Diagnostic Lamp)]
MODELS WITH EARLY (16 PIN) CONNECTOR
Scan Code:
P1650
Blink Code: 1242
Malfunction Indicator Lamp: OFF
ECM
75476
BRN/WHT
75305
26
BRN/WHT
BRN/WHT
a
b
c
d
e

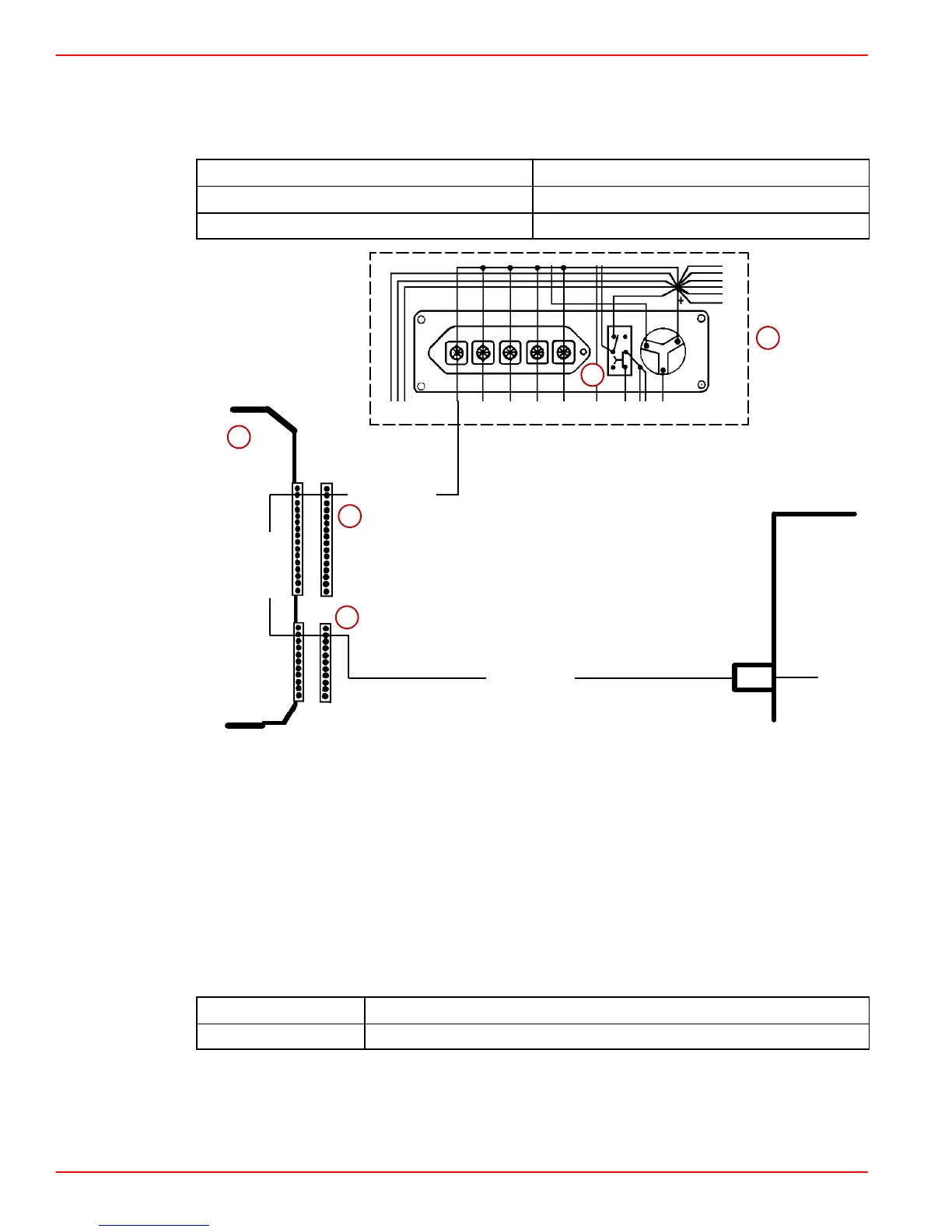

a-Electrical Box
b-Pin 2 of Instrumentation Harness 16 Pin Connector
c-Pin 2 of ECM 11 Pin Harness Connector
d-MIL
e-Instrument Panel
f-ECM Supplied Ground Circuit
CIRCUIT DESCRIPTION:
The MIL (Malfunction Indicator Lamp) is controlled by the ECM. The lamp is supplied 12
volts with the key in the ON/RUN position. A ground (–) path is closed when the ECM
determines that a malfunction (trouble code) has occurred. The lamp is illuminated.
CKT PIN
NAME
26 ECM controlled Ground (–) for dash panel MIL
To Next Page
