MAINTENANCE SERVICE MANUAL NUMBER 22
Page 1B-44 90-860074--1 FEBRUARY 2002
Continuity Circuit (continued)
22028
a
b
c

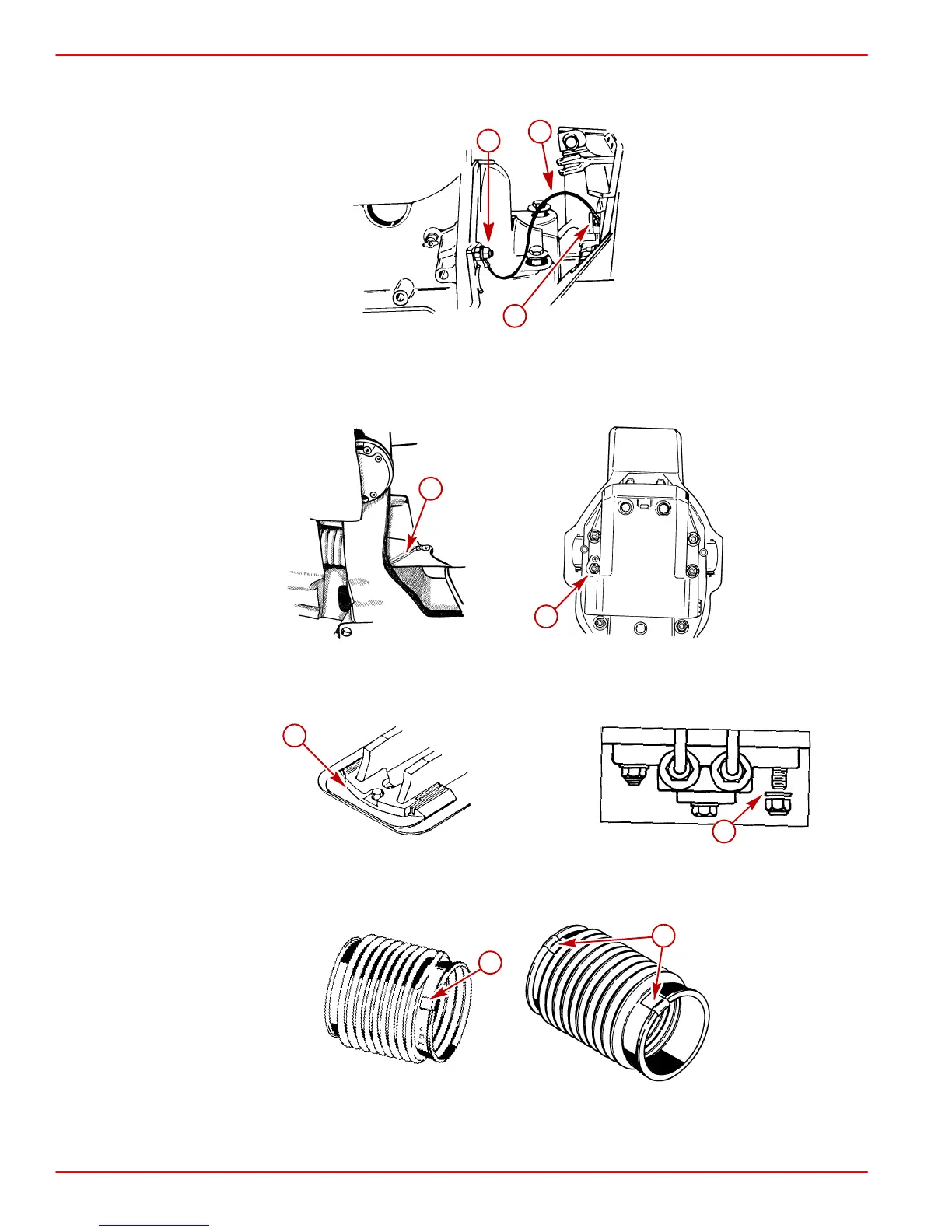

a-Flywheel Housing Grounding Stud
b-Ground Wire
c-Inner Transom Plate Grounding Screw
22755
22031
a
b
a-Gimbal Ring To Bell Housing Ground Wire
b-Sterndrive Unit To Bell Housing Ground Plate
70575
22230
a
b
a-Driveshaft Housing To Gear Housing Anodic Plate
b-Hydraulic Connector Block To Gimbal Housing Ground Washer
50383
22079
b
a
a-U-joint Bellows Ground Clip
b-Exhaust Bellows Ground Clips
To Next Page
