ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-42 90-860074--1 FEBRUARY 2002
Removal
IMPORTANT: Mark the location of each rocker arm assembly and cylinder head to
ensure that they are reassembled in the same location.

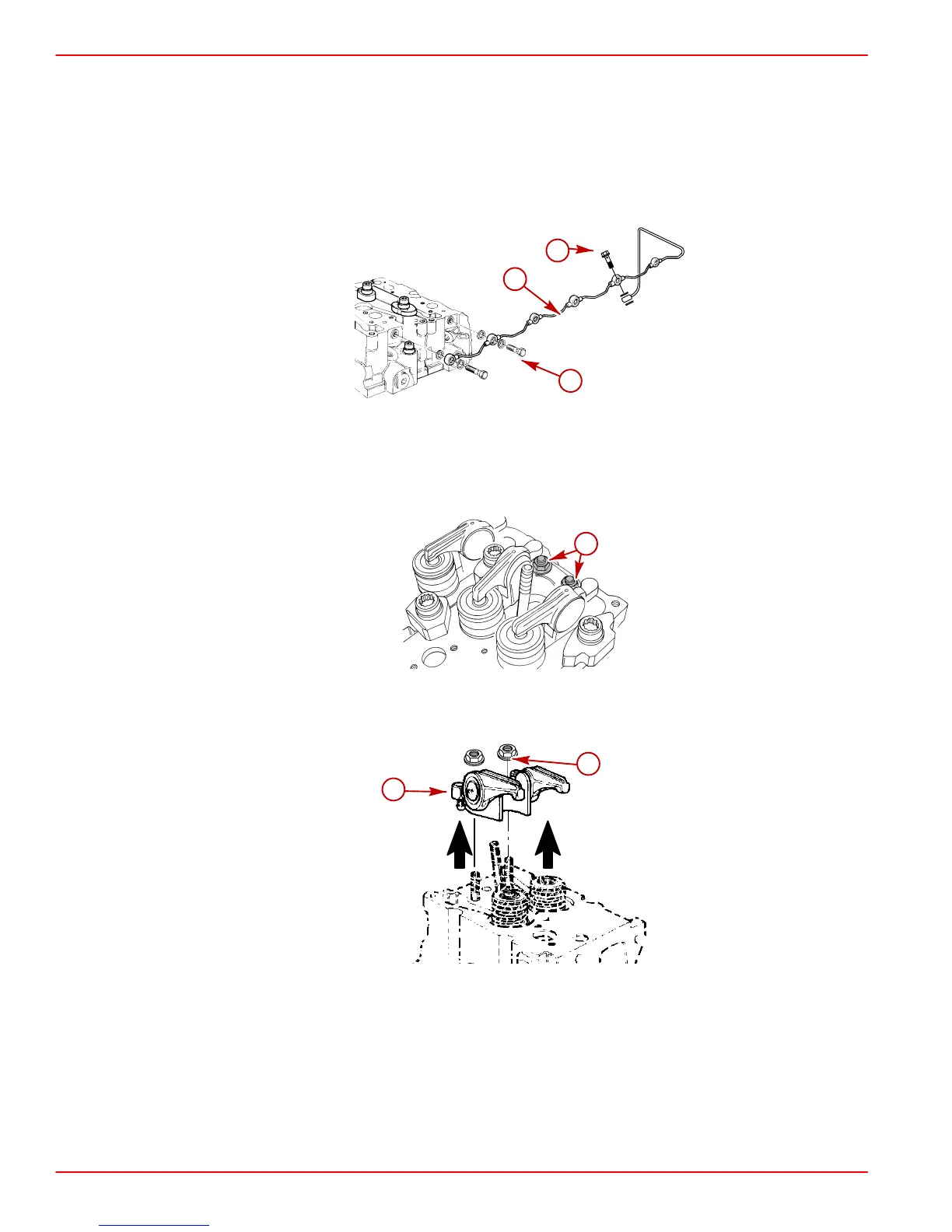

1. Mark the position of the rocker arm assemblies and cylinder heads for reassembly.
2. Remove rocker arm oil feed line banjo bolts with sealing washers. Remove line from
cylinder heads and from rear (starboard) of cylinder block.
75103
a
b
b
a-Oil Feed Pipe
b-Banjo Bolts With Sealing Washers
3. Unscrew rocker arm retaining nuts.
75387
a
a-Retaining Nuts
4. Remove the rocker arm assemblies, by lifting upward.
75511
a
b
a-Retaining Nuts
b-Rocker Arm Assembly
To Next Page
