ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-88 90-860074--1 FEBRUARY 2002
Oil Pan and Oil Pick-Up Tube Assembly
Removal
1. Disconnect oil drain tube from oil pan. Remove oil pan.
2. Remove screws retaining baffle, oil pick-up (suction) tube, and oil pick-up tube elbow
to block.

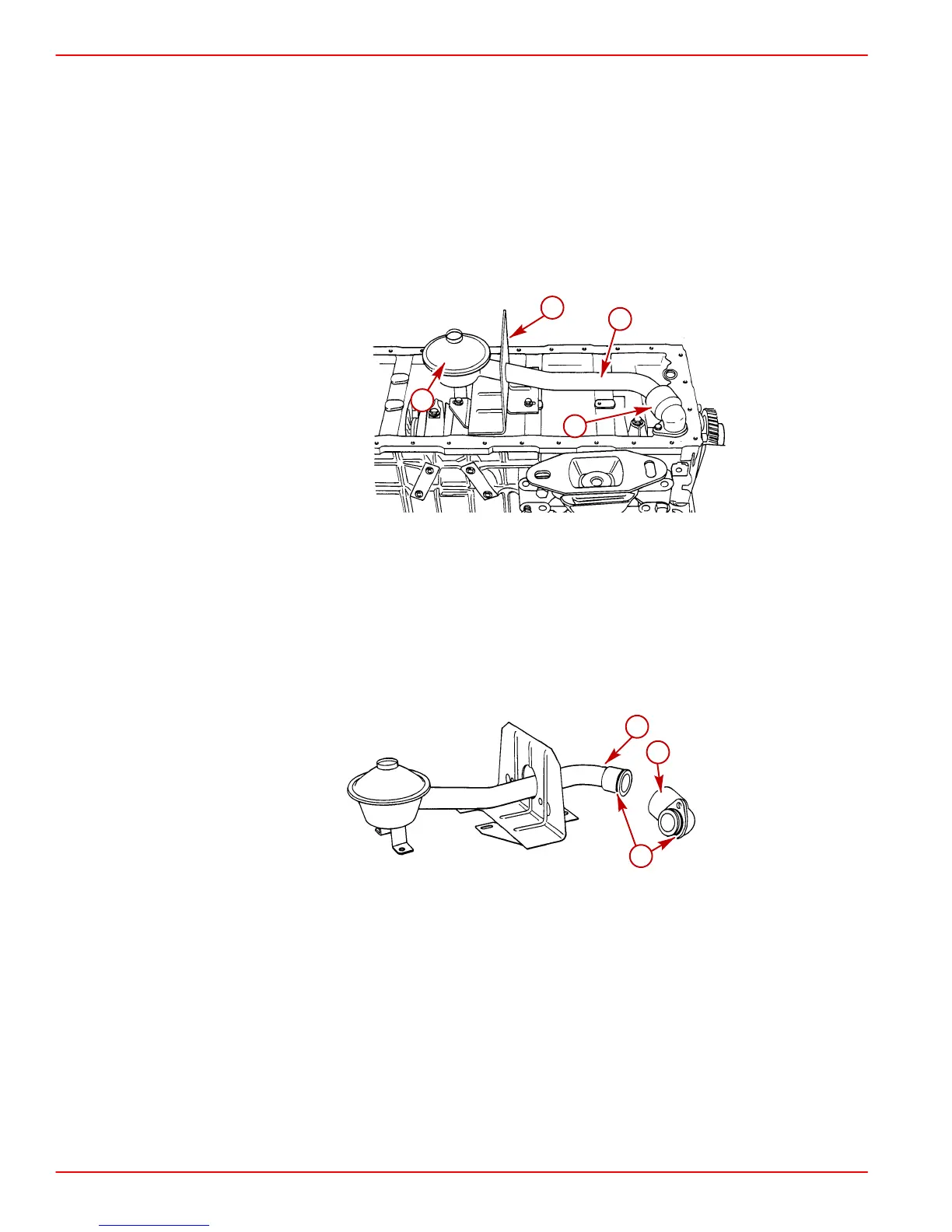

NOTE: This view is representative of all models. Your specific pick-up tube assembly may
differ slightly in appearance.
70288
a
b
c
d
Typical
a-Baffle
b-Oil Pick-up Tube
c-Elbow
d-Inlet (Strainer End)
3. Remove old O-ring from suction tube. Remove old O-ring from elbow on engines with
two piece suction tube.
70286
a
b
c
a-Pickup Tube
b-Elbow
c-O-rings, Two Piece Suction Tube
To Next Page
