Assembly
IMPORTANT: When installing rocker arms and valve push rods, coat bearing
surfaces with engine oil.

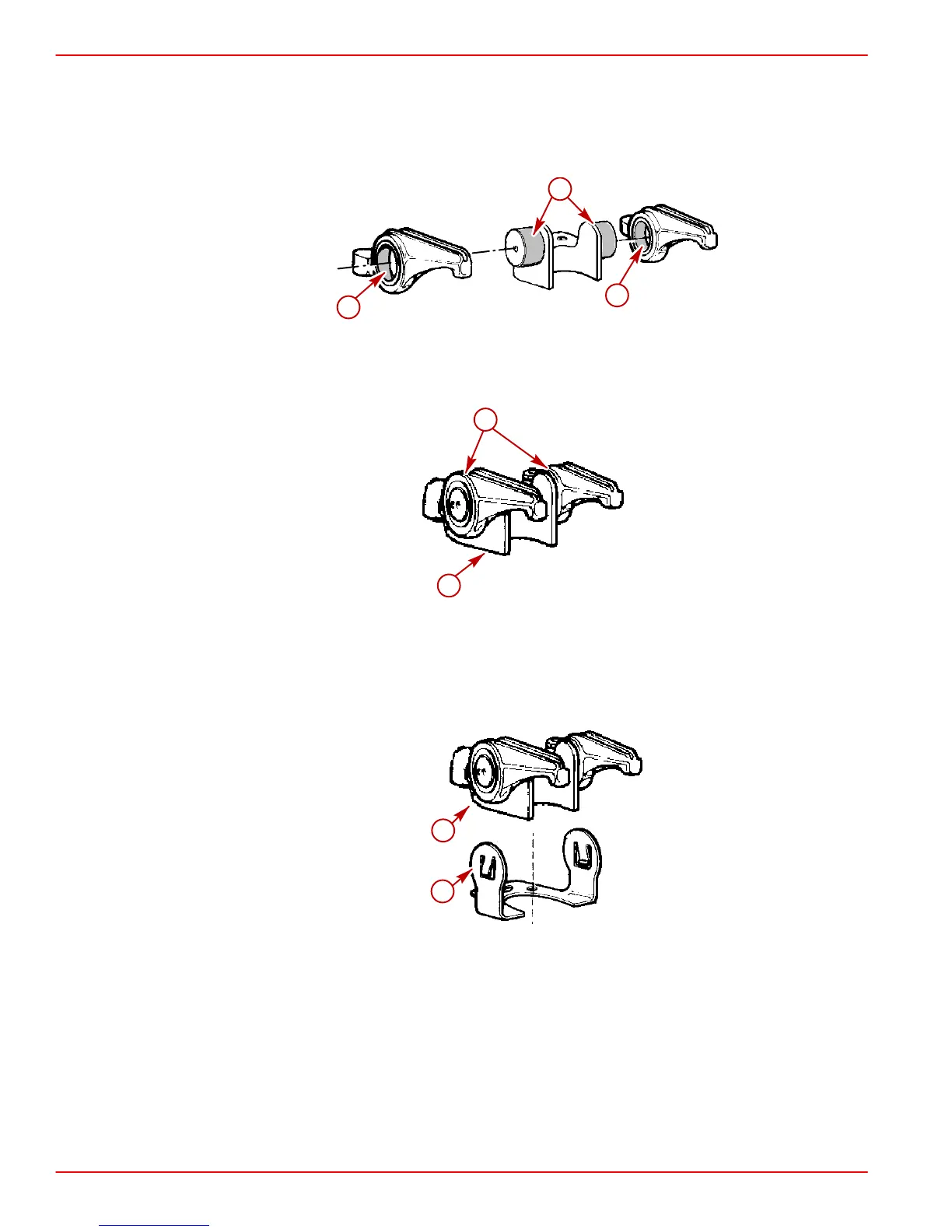

1. Lubricate rocker arm bushings and support journals with SAE 30W engine oil.
75349
a
b
a
a-Rocker Arm Bushings
b-Rocker Arm Support Journals
2. Install rocker arms on support. Position as shown.
75101
a
b
a-Rocker Arms (Positioned Correctly)
b-Rocker Arm Support
3. Install strap. Make sure strap is not spread open or valve cover will not fit.
75101
a
b
a-Rocker Arm Assembly
b-Strap
