STARTING SYSTEM
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 4A-9
Installation
Solenoid Switch

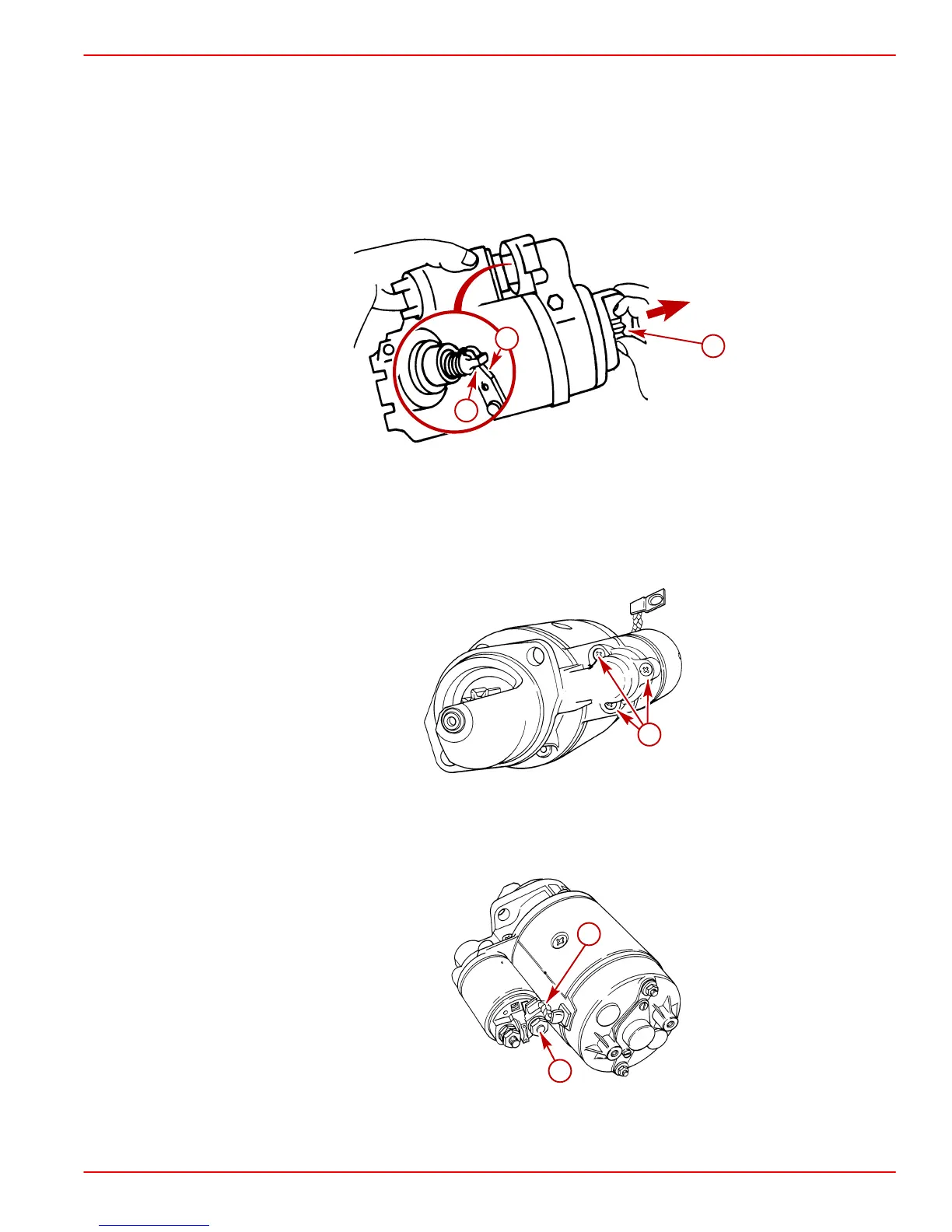

1. Apply a light coat 2-4-C Marine Lubricant with Teflon to the shift lever and sliding portion
of the pinion.
2. Slide solenoid plunger onto shift lever.
70833
a
b
c
a-Solenoid Plunger
b-Shift Lever
c-Drive Gear
3. Install solenoid screws and tighten securely.
70812
a
a-Solenoid Screws
4. Install nut on the field wire terminal and tighten securely.
70811
a
b
a-Field Coil Wire
b-Hex Nut
