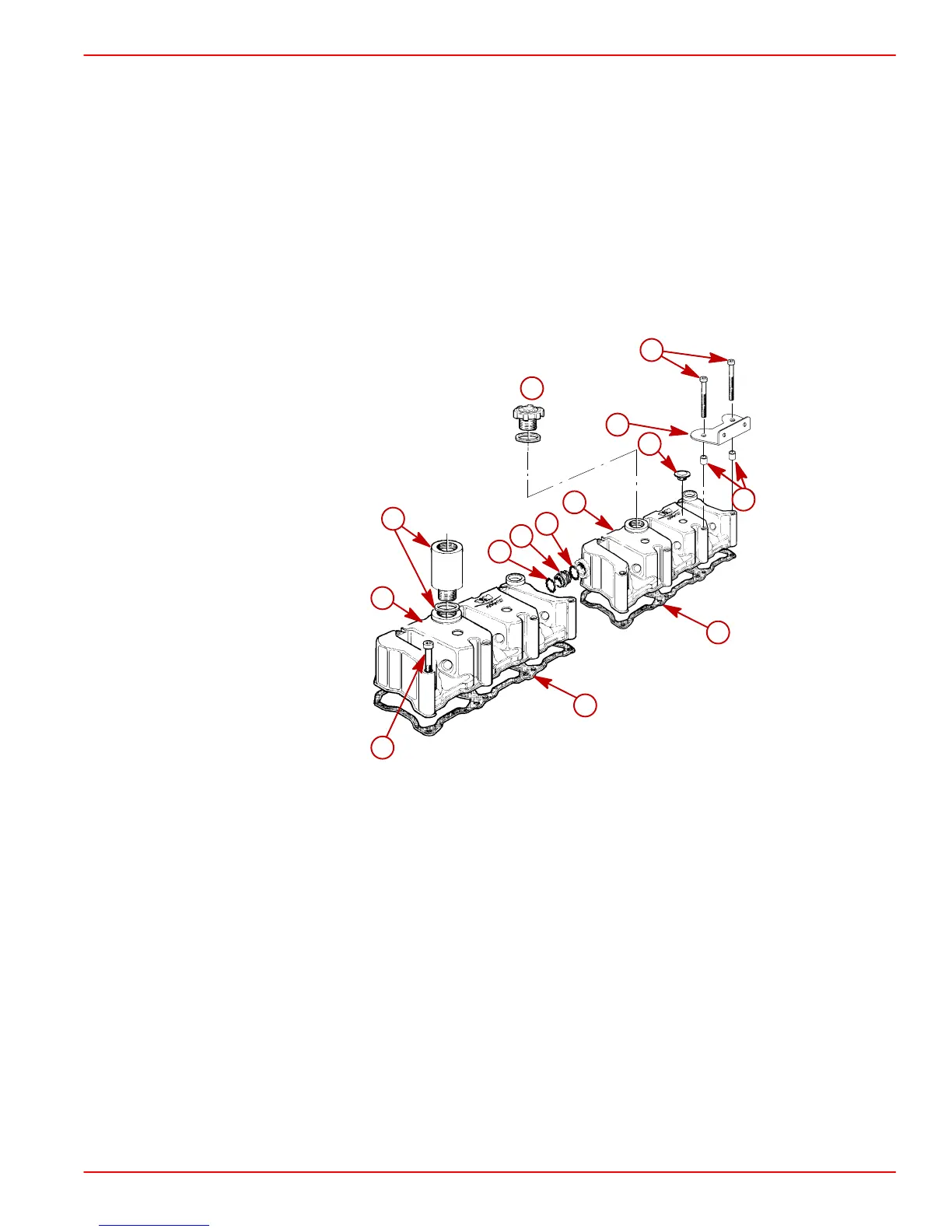

b. On D4.2L D-Tronic Engines:
(1.)Install 2 new O-rings on connector before pushing valve covers together. Push
covers together.
(2.)Install valve cover gaskets.
(3.)Position the two longer screws through the electrical support bracket and
spacers. Install as shown. Install remaining screws Torque screws evenly in a
diagonal pattern to 11.5 Nm (101 lb-in.).
(4.)Install plastic plugs into cylinder head screw holes.
(5.)Install oil fill cap extension tube with sealing washer on front valve cover as
shown. Install oil fill cap with sealing washer on aft valve cover. Tighten both
securely.
g
75103
b
c
d
e
f
g
h
i
j
k
a
a
c
d
a-O-ring
b-Connector
c-Gasket
d-Valve Cover
e-Screw (M6 x 80)
f-Screw (M6 x 88)
g-Spacer
h-Bracket
i-Plastic Plug
j-Extension Tube With Sealing Washer
k-Oil Fill Cap (Aft Cover)
2. Install oil separator vent hose.
