ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-58 90-860074--1 FEBRUARY 2002
6. ONE AT A TIME, remove Guide Pins and install oiled 12 mm cylinder head bolts with
washers HAND tight. Do NOT disturb head placement.
7. Repeat Steps 5. and 6., for each cylinder head and corresponding cylinder, proceeding
in numerical order from cylinder number 1.
8. Install all lubricated 14 mm cylinder head bolts, including the proper formed

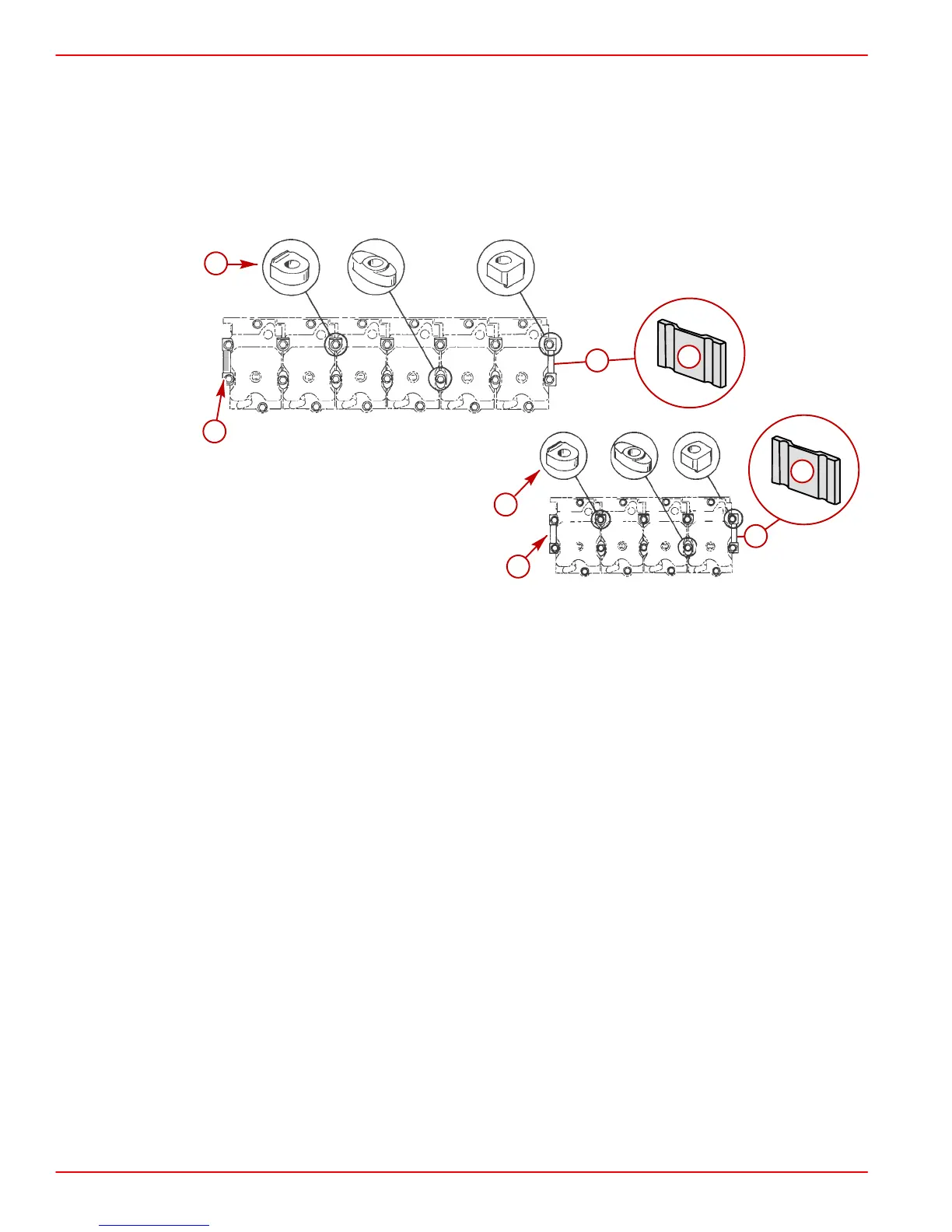

spacer-washers (terminal bridges, three types) and cylinder head spacers for ends of
first and last cylinder heads, as shown in the following.
75515
a
a
a
a
b
b
a
a
a-Spacers. First and Last Cylinder Head Ends
b-Formed Spacer-Washers (Terminal Bridges, Three Types)
