ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-66 90-860074--1 FEBRUARY 2002

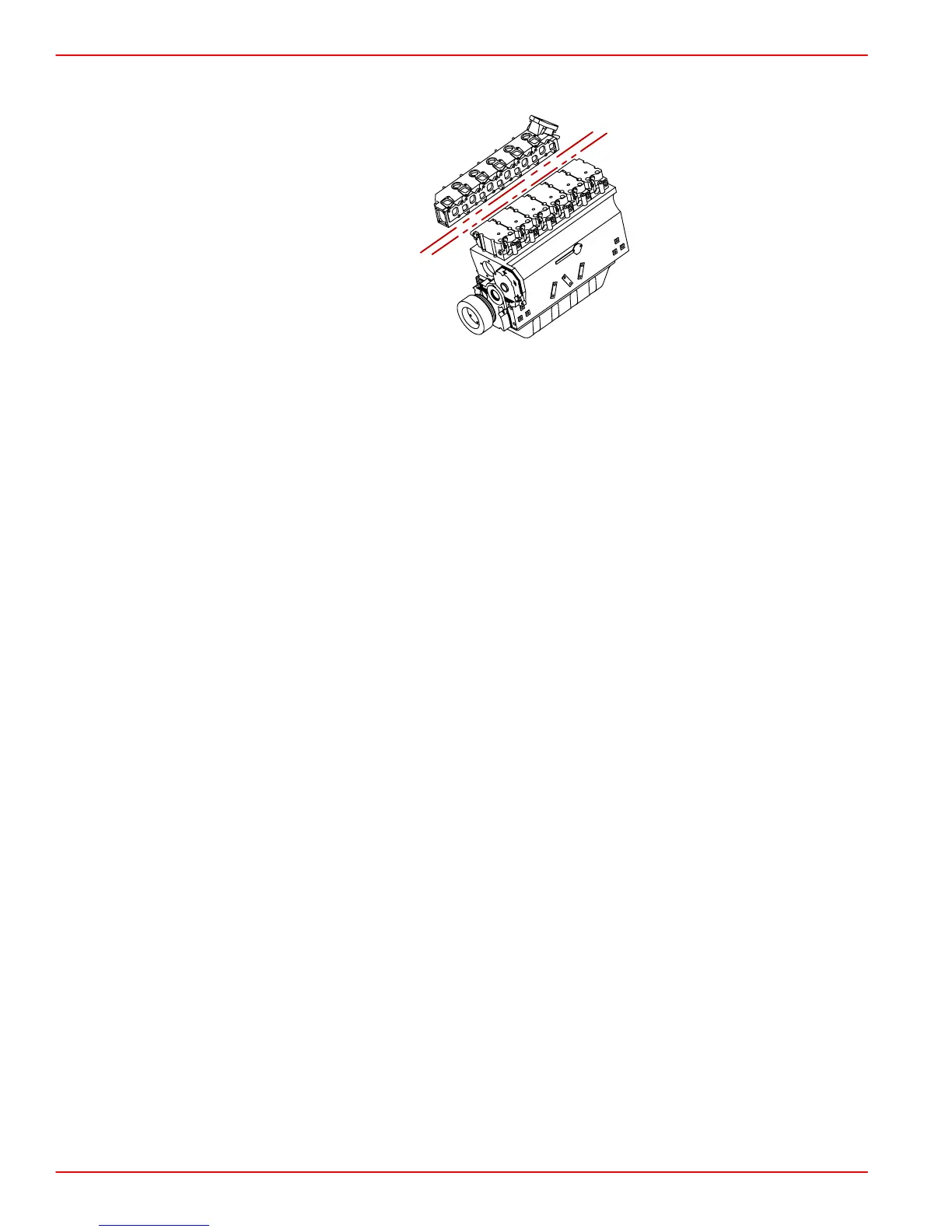

15. Temporarily install exhaust manifold without gaskets and FINGER-tighten each nut with
locking washer.
16. Slightly loosen 12 mm and 14 mm bolts as needed, to allow cylinder heads to ALIGN
as you HAND tighten exhaust manifold nuts.
17. HAND TIGHTEN all 14 mm and 12 mm cylinder head bolts in torque sequence.
To Next Page
