Mercury D4.2L D-Tronic Service Manual

ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-68 90-860074--1 FEBRUARY 2002
19. Torque the side bolt set as indicated.
a. First pass:
Engine
Sequence Torque
D2.8L Side Bolts 11-12-13-14-15-16-17-18 30 Nm (22 lb-ft)
D4.2L Side Bolts 15-16-17-18-19-20-21-22-23-24-25-26 30 Nm (22 lb-ft)
b. Second pass:
Engine
Sequence Torque Angle
D2.8L Side Bolts 11-12-13-14-15-16-17-18 + 85 Degrees
D4.2L Side Bolts 15-16-17-18-19-20-21-22-23-24-25-26 + 85 Degrees
4
1
2
3
6
8
9
11
10
12 13 14
7
5
15 16 17 18
77114
a
b

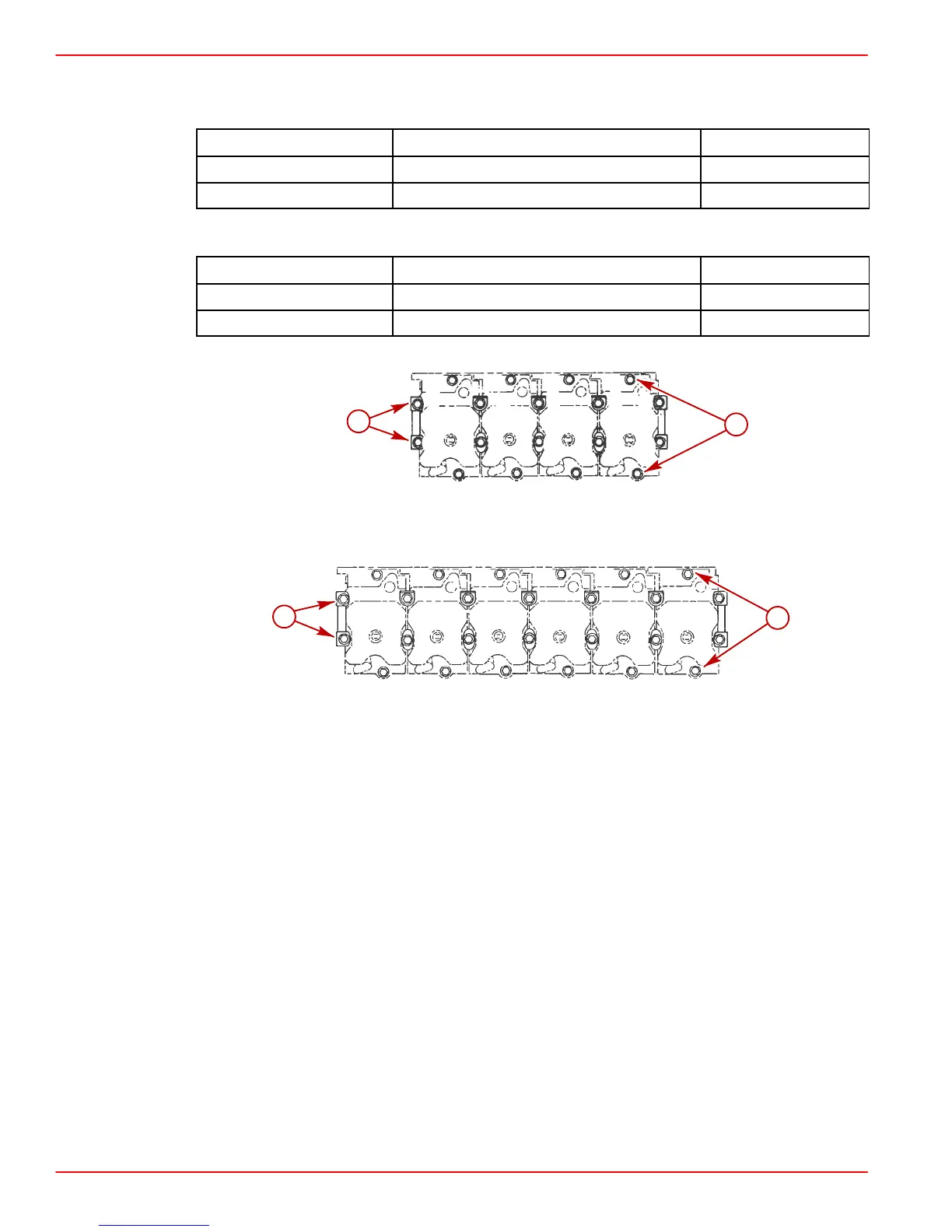

D2.8L D-Tronic Torque Sequence Diagram
2
1
5
6
7
8
9
10
11
12
13
14
15
16
17 18
19
20
21 22 23 24 25 26
3
4
77113
a
b
D4.2L D-Tronic Torque Sequence Diagram
a-Center Bolt Set
b-Side Bolt Set
