ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-90 90-860074--1 FEBRUARY 2002
3. Install oil pick-up tube assembly, with baffle, on cylinder block. Torque screws to 11 Nm
(97 lb-in.).
4. Using a new gasket, install oil pan and related hardware. Torque oil pan screws evenly,
in a diagonal pattern, to 12.7 Nm (112 lb-in.).
70288
75107
b
e
a
c
d

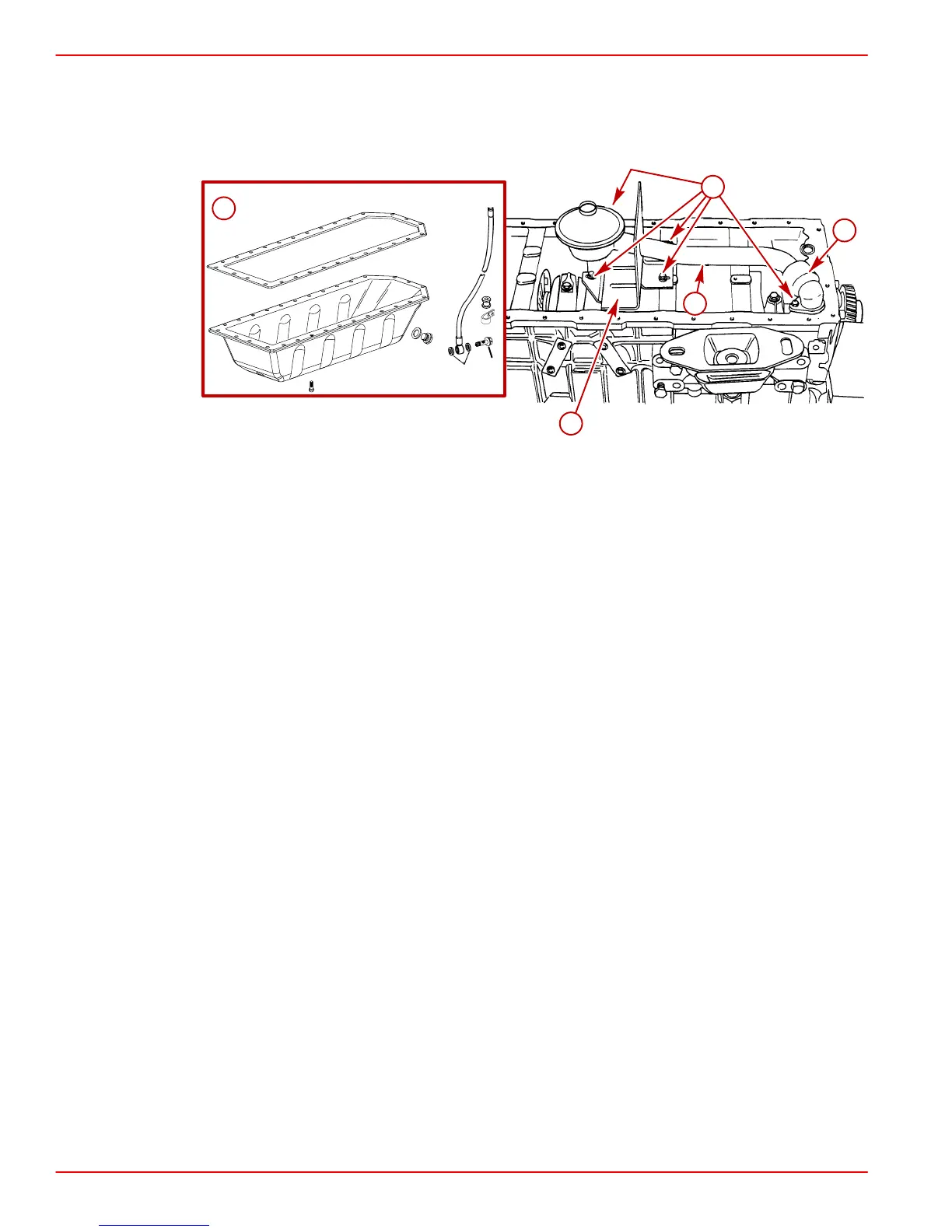

a-Baffle
b-Oil Pick-up Tube
c-Tube Elbow (Except On One-Piece Tube)
d-Screws
e-Oil Pan and Related Hardware
