ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-94 90-860074--1 FEBRUARY 2002
3. Install large hex head fitting with new sealing washer through adapter.
4. Install a new O-ring in adapter groove where it seats on block.
5. Install adapter and torque the fitting to 44 lb-ft (60 Nm).
6. Observe markings made earlier and connect oil hoses to adaptor. Tighten fittings
securely.
7. Connect audio warning wire ring terminal to switch. Tighten nut securely. Coat terminals
with Quicksilver Liquid Neoprene.
75528
75385
a
b
e
c
d
a
f
f
c
b

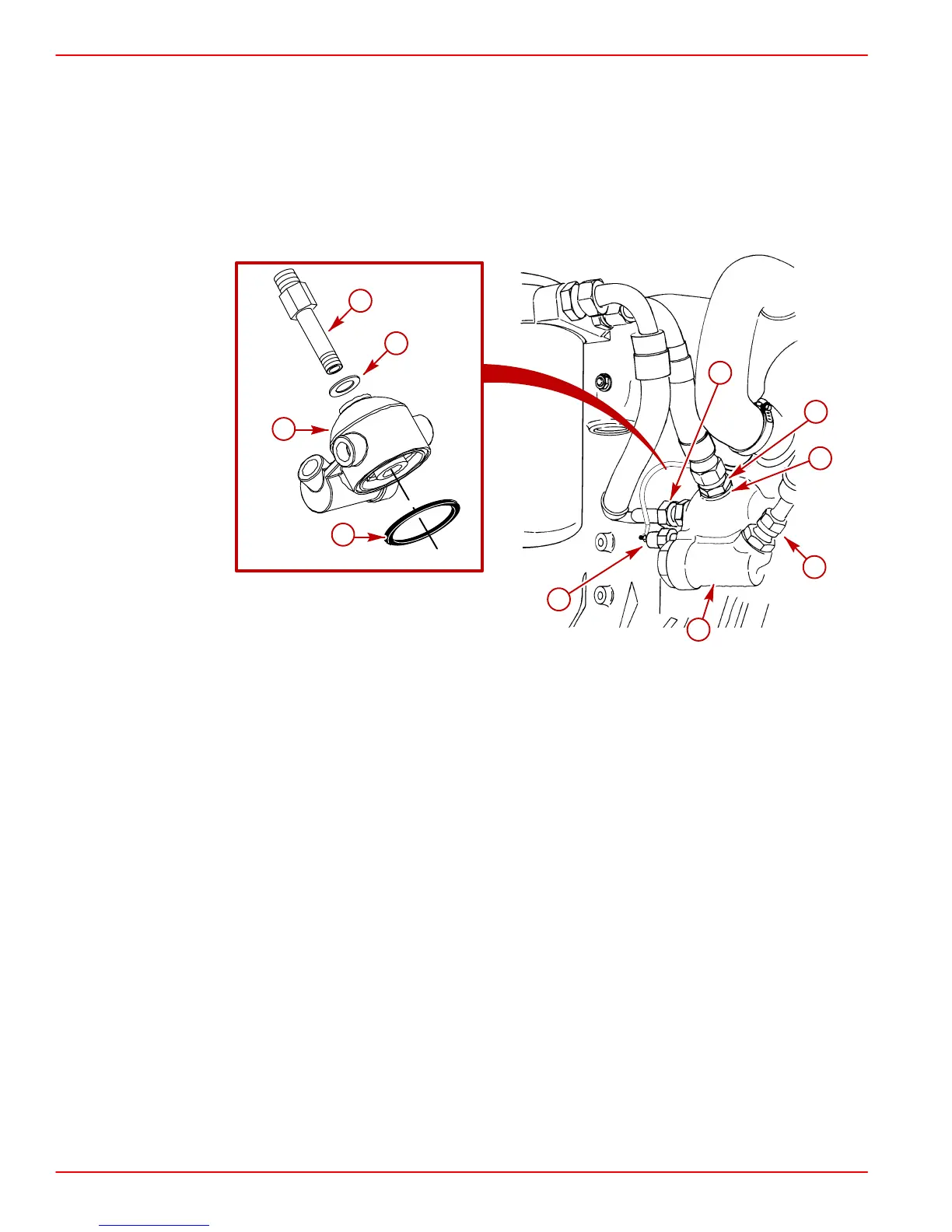

a-Adapter
b-Hex Head Fitting
c-Sealing Washer
d-O-ring Seal
e-Oil Temperature Audio Warning Switch Connection
f-Hose Fitting
8. Fill engine to proper level with recommended engine oil.
9. Start engine and closely observe instrumentation. Ensure that all systems are
functioning correctly. Check for leaks.
