ENGINE MECHANICAL
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 3A-143

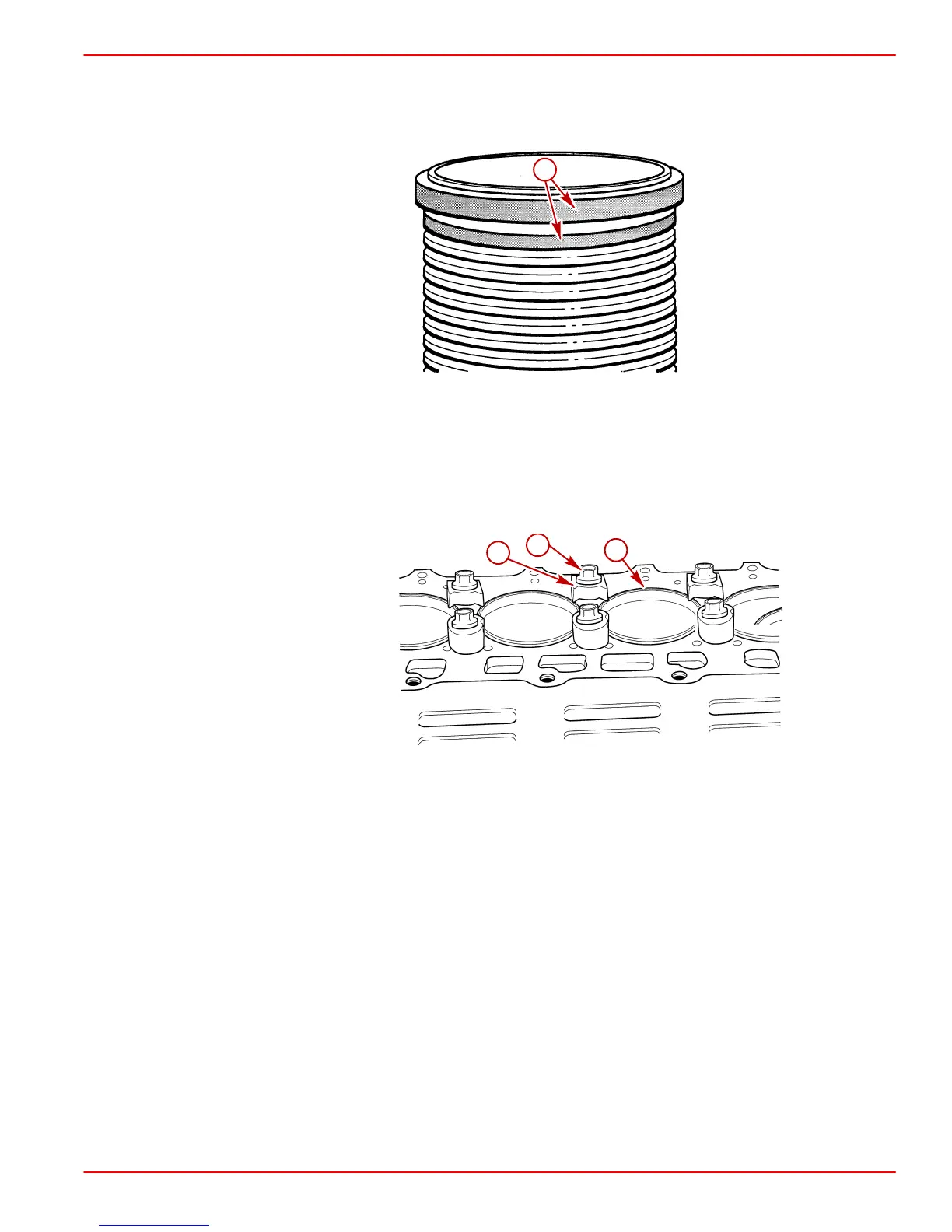

7. Apply Loctite Master Gasket 92-12564--1 or Loctite 620 (obtain locally) to liner surfaces
AS SHOWN.
IMPORTANT: Do NOT apply Loctite to shim or shim contact surfaces.
70414
a
a-Loctite Applied To These Areas ONLY
8. Install liners in block, being careful not to damage O-rings or distort shim. Hold liners
securely in position with suitable bolts and head bolt formed, spacer-washers as shown.
Torque bolts to 50 Nm (37 lb-ft). Allow Loctite to dry. (Do NOT release liners for
approximately 1-1/2 to 2 hours.)
75015
a
b
c
a-Liner
b-Suitable Bolt
c-Formed, Spacer-Washer
9. Once again, verify cylinder liner protrusion and make corrections if required.
10. Continue engine assembly. Refer to appropriate procedures.
