INSTRUMENTATION SERVICE MANUAL NUMBER 22
Page 4D-18 90-860074--1 FEBRUARY 2002
INSTALLATION

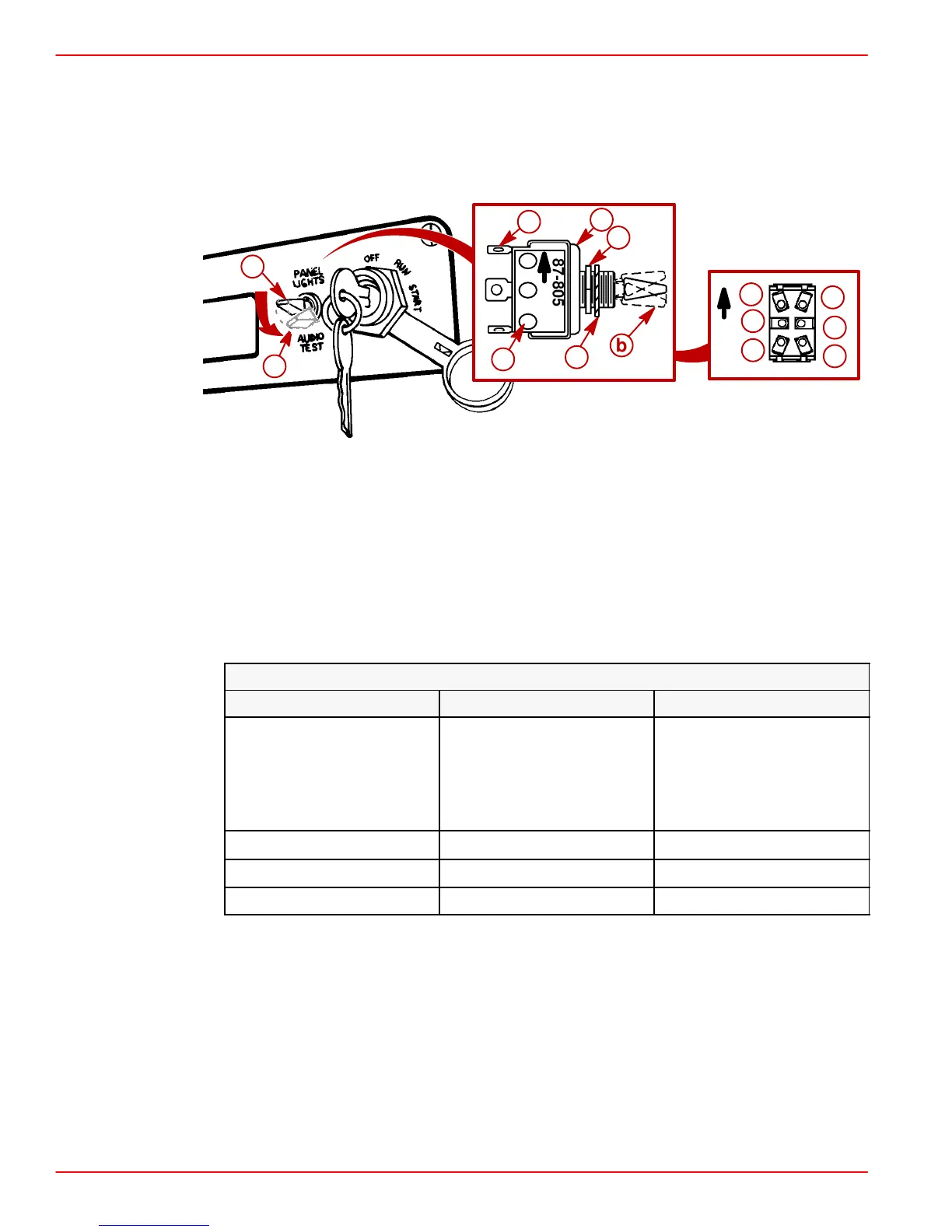

1. Using screws provided, connect the listed color coded wires to numbered switch
terminals as shown.
2. Install switch in Engine System Monitor panel. Tighten hex nut securely to prevent
switch from turning in its mounting hole. Do NOT overtighten.
71886
UP
a
b
1
2
3
4
5
6
73369
87-805675
UP
123
c
c
d
e
f
a
b
a-Audio Test/Panel Light Switch
b-Spring-Loaded Audio Test Portion (Direction of Movement DOWN When
Installed)
c-Terminal Number
d-Terminal
e-Jam Nut
f-Locking Washer
g-Engine System Monitor Panel
h-Hex Nut
D2.8L D-Tronic and D4.2L D-Tronic
Harness Wire Connect To: Terminal Number
WHITE/RED And WHITE/
YELLOW
OR
1
TAN/WHITE And TAN/
BLACK
"
1
BLACK
"
2
PINK Or PURPLE
1
"
4
GREEN
"
5
1
Model dependent.
3. Make sure that all connections are secure. Seal terminals with liquid neoprene.
To Next Page
