Mercury D4.2L D-Tronic Service Manual

WIRING DIAGRAMS SERVICE MANUAL NUMBER 22
Page 4E-26 90-860074--1 FEBRUARY 2002

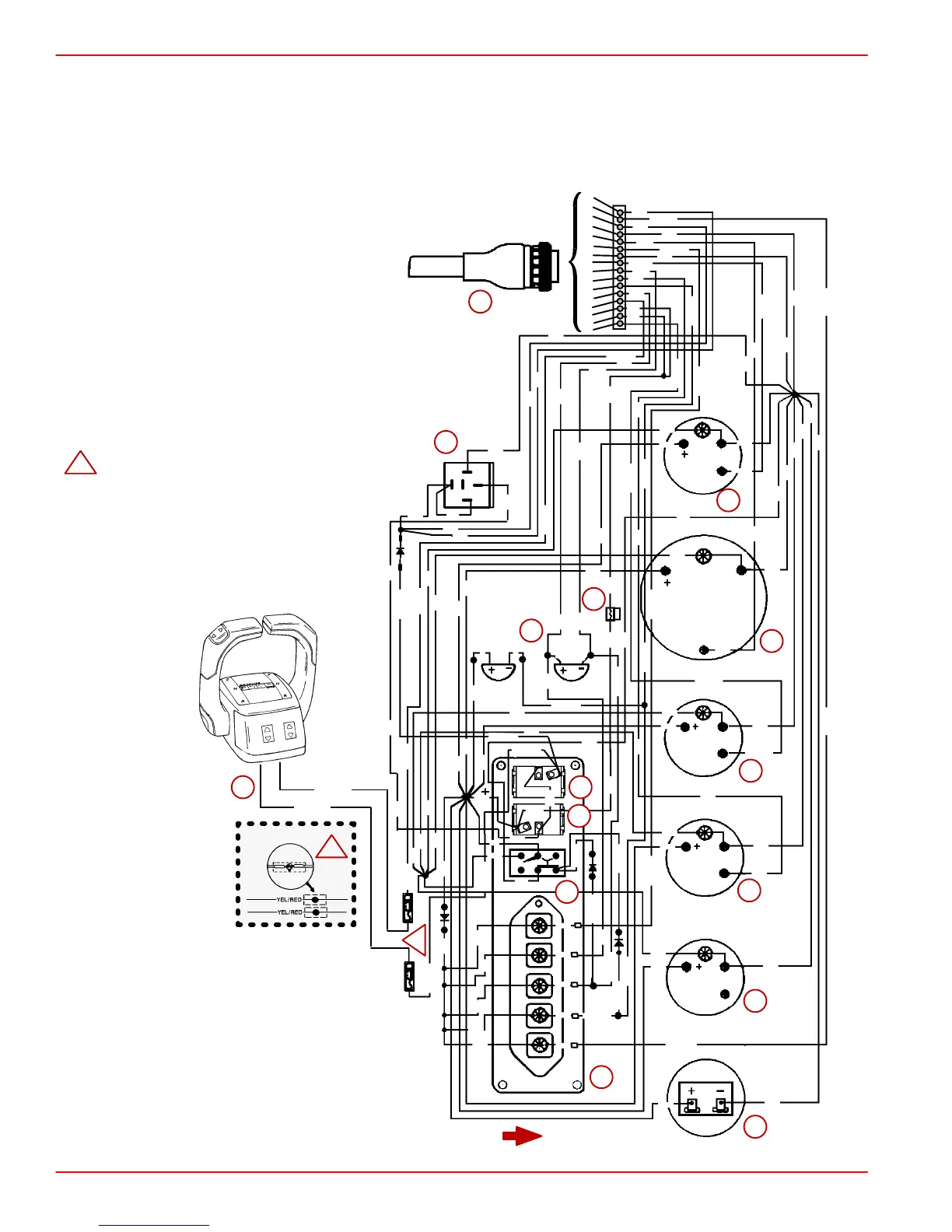

Quicksilver Second Station Instrumentation Wiring
Models With Early Connectors
STERNDRIVE (MCM) - SECOND STATION INSTRUMENTATION
1 - Oil Pressure
2 - Tachometer
3 - Trim Gauge
4 - Coolant Temperature
5 - Voltmeter
6 - Cruise Log (Engine Hour Meter)
7 - Engine System Monitor -
a. - Glow Plug Indicator, b. - Alternator, c. - Oil Pressure,
d. - Coolant Temp. e. - Malfunction Indicator Lamp
8 - Instrument Lights and Audio Test Switch
9 - Start Switch
10- Stop Switch
11- 20-Amp Fuse and Holder
12- Audio Warning Buzzers
13- Remote Control - (Neutral Safety Circuit)
14- Extension Harness
15- Relay
Bullet connectors shown. Alternately, if equipped, connect
wires together with ring terminals using screws and hex
nuts. Apply Liquid Neoprene to connections and slide
rubber sleeves over connections.
76057
YEL/RED
YEL/RED
2
3
4
7
1
5
6
8
9
10
11
BRN
BLK
13
14
15
16
12
ORN
PUR
PUR
BLK
GRY
BLU/TAN
LT.BLU
TAN
ORN
BRN/WHT
BLK
BLK
BLK
BLK
BLK
PUR
PUR
PUR
PUR
PUR
GRN
GRN
GRN
GRN
GRN
PUR
BLK
PUR
TAN
BRN/WHT
BRN/WHT
ORN
RED
PUR
GRN
BLU/TAN
BRN
BLK
BLK
BLK
BLK
PUR
BRN/WHT
BLK
BLK
BLK
BLK
BLK
PUR
PUR
PUR
PUR
GRN
GRN
GRN
GRN
PUR
PUR
PUR
TAN/BLK
YEL/RED
RED
RED
BLK
YEL/RED
YEL/RED
WHT/YEL
WHT/YEL
WHT/RED
WHT/RED
YEL/RED
YEL/RED
BLU/TAN
BLU/TAN
GRY
GRY
GRY
TAN/BLK
TAN/BLK
TAN/BLK
TAN/BLK
LT.BLU
LT.BLU
BLK
BLK
BLK
BLK
BLK
BLK
BLK
BLK
BLK
BLK
BLK
BLK
BRN/WHT
BRN/WHT
TAN
TAN
TAN TAN
ORN
BRN
ORN
BRN
ORN
ORN
BRN
GRN
GRN
RED
BLK
BRN
PUR
PUR
GRN
GRN
YEL/RED
YEL/RED
BRN/WHT
BRN/WHT
RED
BLK
b.
a.
e.
d.
c.
123
45 6
30
85
86
87
RED
PUR
PUR
BLK
BLK
BLK
PUR
YEL/RED
UP
TAN/BLK
TAN/WHT
TAN/WHT
YEL/RED
PUR
PUR
PUR
PUR
PUR
RED
YEL/RED
ORN
ORN
3
4
5
6
7
8
9
2
1
10
11
12
13
14
15
1.
1.
1.
