2. Lubricate fuel filter seal with clean 30W engine oil. Align filter to bracket. Twist locking
ring by hand to secure filter to bracket. Do NOT use a filter wrench.
74731
a
b
c
d

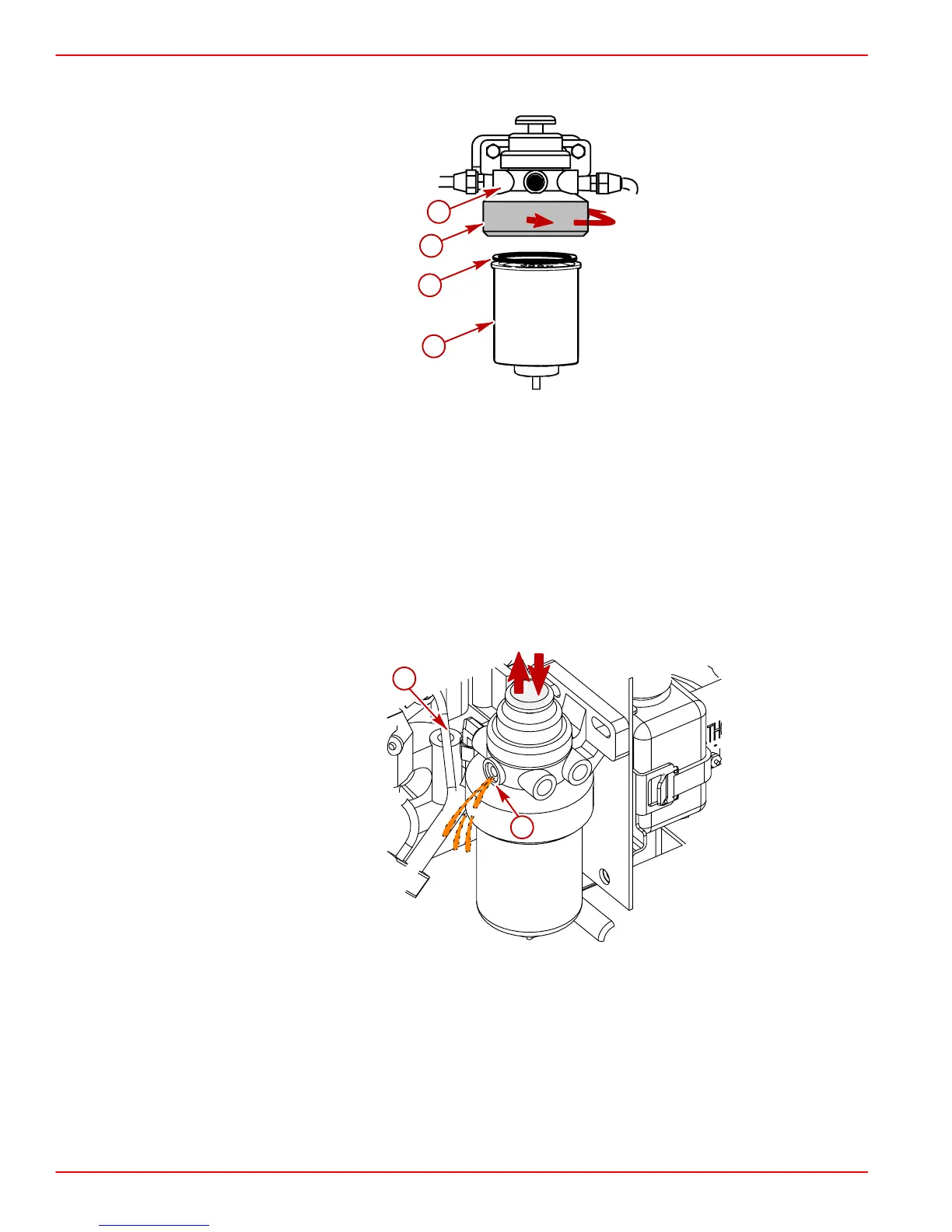

a-Filter Header
b-Locking Ring
c-Sealing Ring (Lubricate)
d-Water Separating Fuel Filter
NOTE: Place a suitable container under fuel filter to catch excess fuel.
3. Loosen bleed screw on fuel filter bracket.
4. Move plunger on hand pump/primer up and down repeatedly, until an air free stream of
fuel flows from bleed screw. Filter is full when this occurs.
5. Tighten bleed screw.
74726
a
b
a-Pump/Primer Knob
b-Bleed Screw
6. Connect battery cables.
7. Start engine, check for fuel leaks. If leaks exist stop engine immediately. Recheck filter
installation.
