INJECTION PUMP SERVICE MANUAL NUMBER 22

Page 5D-18 90-860074--1 FEBRUARY 2002

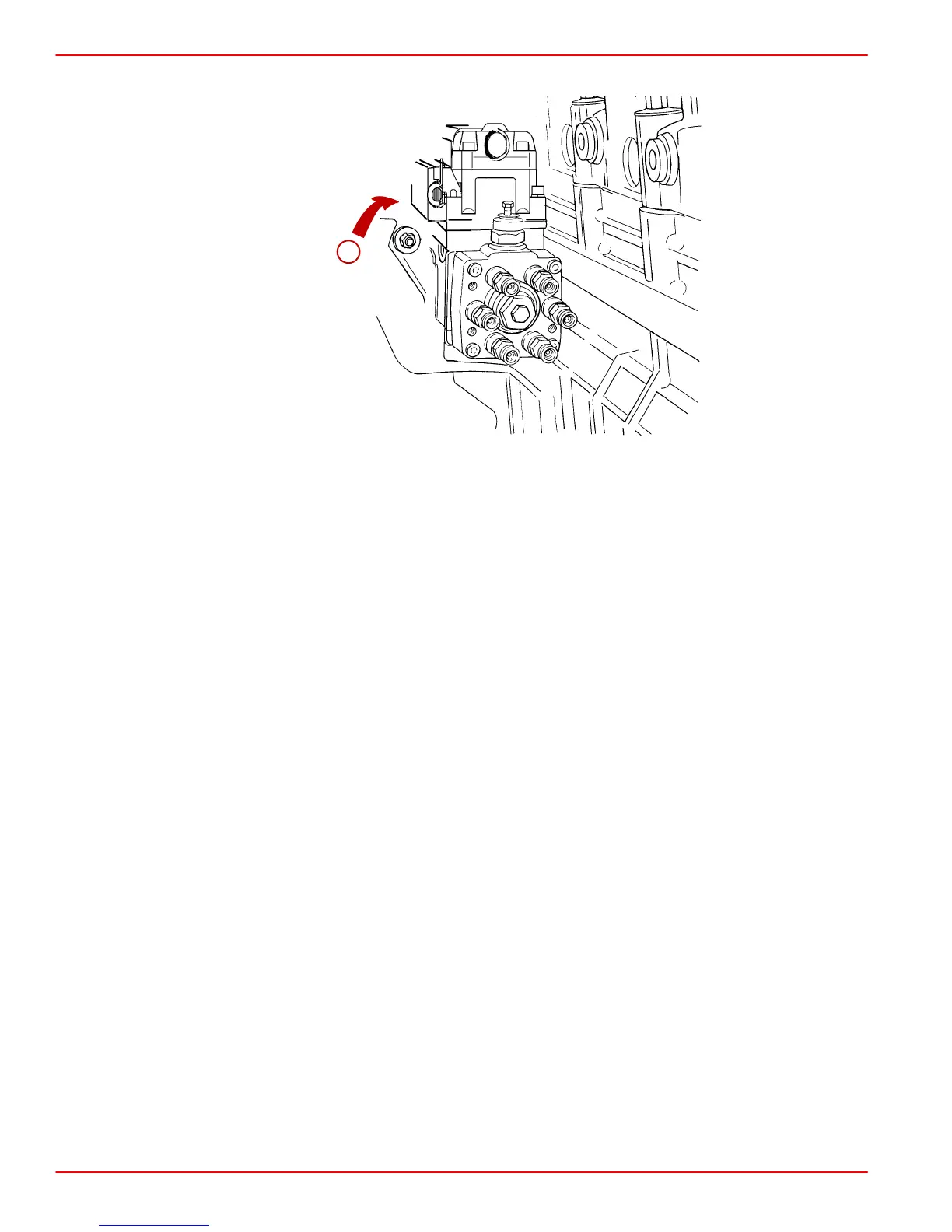

15. Rotate pump to end of adjustment slot travel in direction shown.

70422

Typical

a-Direction To Rotate

16. Timing of the injection pump MUST BE accomplished. Refer to Fuel Injection Pump

Timing for instructions.
