EDI DIAGNOSIS
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 5E-111
INSTALLATION
1. Install TP sensor to ECM bracket using allen head screws with flanged nuts. Torque
screws to specifications.
2. Connect sensor to engine harness.
3. Install throttle cable. Refer to SECTION 2.
4. Tighten throttle cable locknuts until they bottom and loosen 1/2 turn.

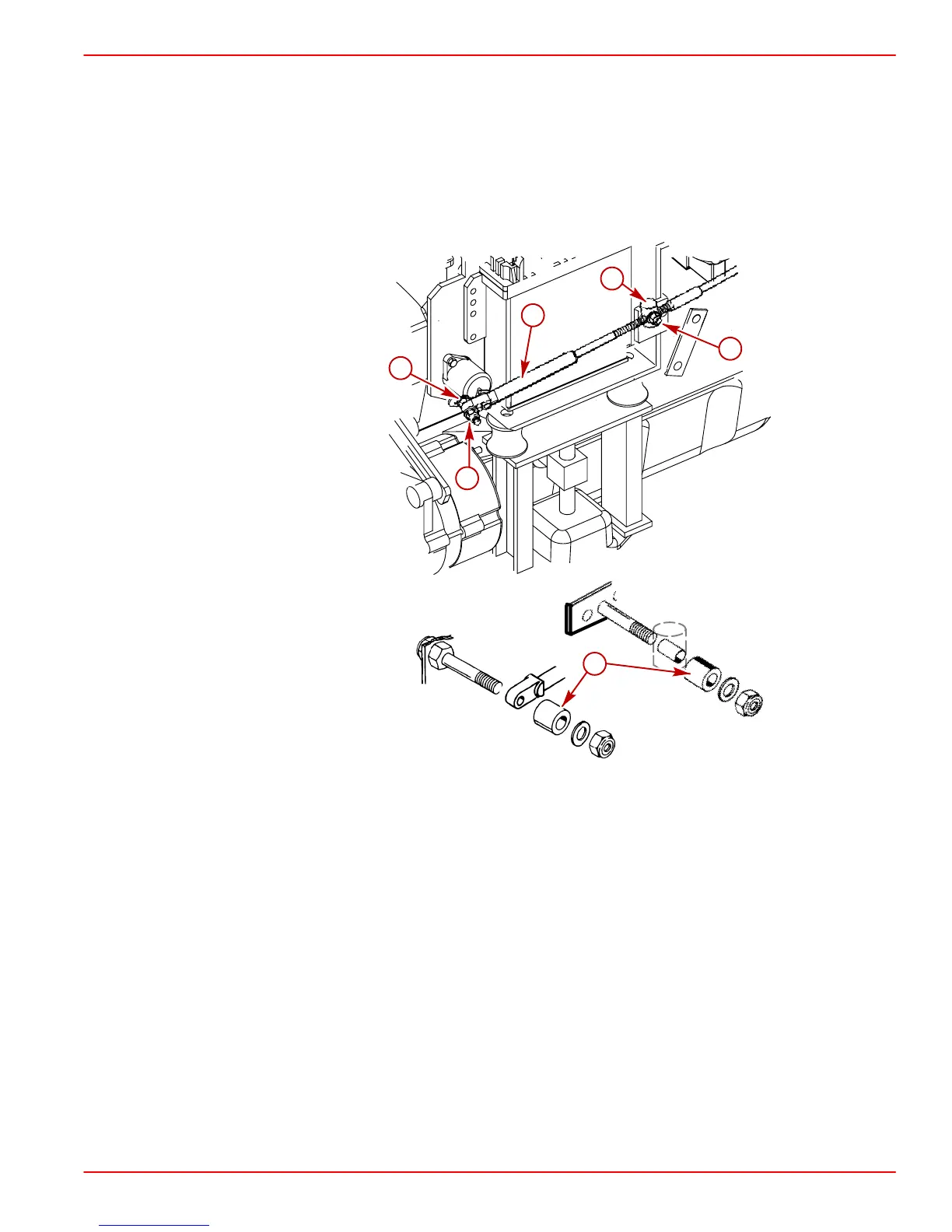

75332
a
b
c
d
e
d
a-Throttle Cable End Guide
b-Cable Barrel
c-Anchor Stud
d-Flat Washer And Locknut
e-Spacer (If Required)
5. Connect the battery cables. Start the engine and check the TP sensor output voltage.
It should be 0.4-0.8 V at idle and 4.5 V at WOT Refer to Testing Diagnostic Circuit Check.
