SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22
Page 6A-22 90-860074--1 FEBRUARY 2002
8. Coat backside of cam with Loctite Master Gasket sealant.
9. Install cam in housing as shown. Tighten screw securely. Remove excess sealant and
allow to dry before continuing assembly.
70633
b
c
b
70638

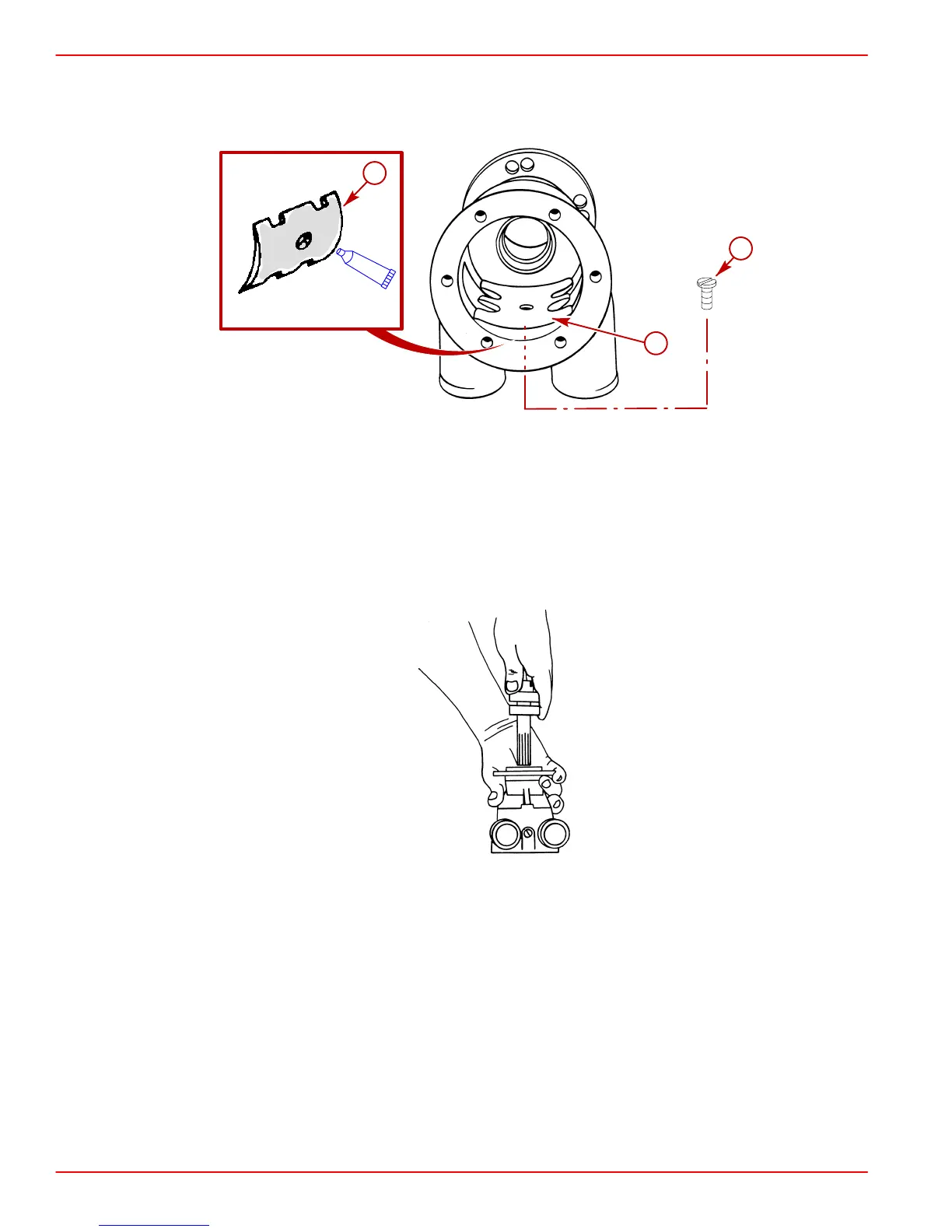

Typical Pump and Cam
a-Sealant
b-Cam
c-Screw
10. Coat lips of seals in pump housing with U-Joint and Gimbal Bearing Grease.
11. Install shaft and bearing assembly into housing as shown.
12. Tap lightly with soft faced hammer if needed to seat assembly.
70638
Typical Pump and Shaft With Bearings
