SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22
Page 6A-26 90-860074--1 FEBRUARY 2002
3. Install pump on timing gear cover studs. Tighten hex nuts with washers securely.
70423
23161
a
b

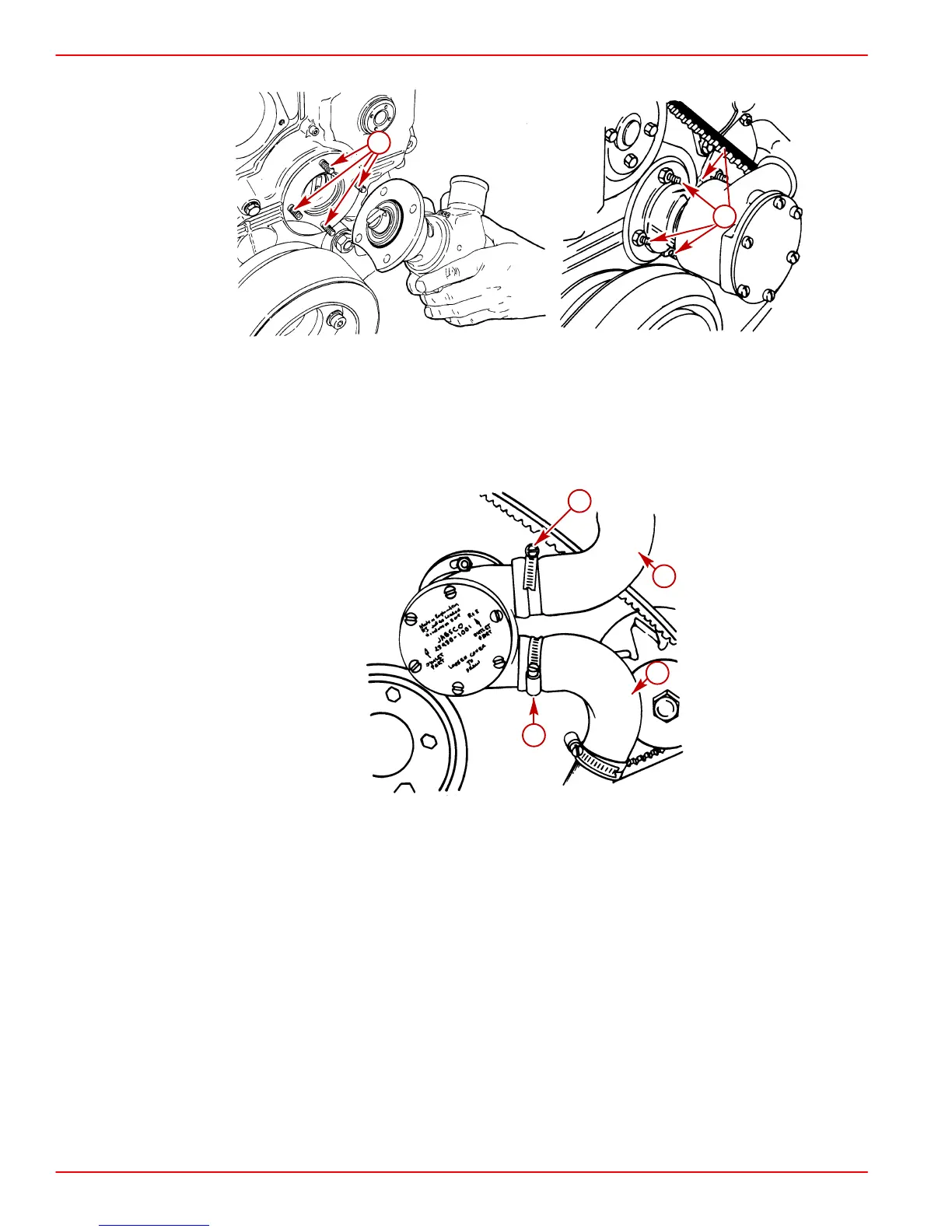

Typical Pump Installation
a-Studs
b-Hex Nuts With Washers
4. Install seawater inlet and outlet hoses. Tighten hose clamps securely.
70636
c
c
b
a
Typical Pump and Hoses
a-Inlet Hose
b-Outlet Hose
c-Hose Clamps
5. Open seacock, if equipped, or remove plug from seawater inlet hose and reconnect
hose. Tighten hose clamps securely.
6. Start engine.
7. Check for leaks.
