SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22
Page 6A-30 90-860074--1 FEBRUARY 2002
Installation
IMPORTANT: Mount seawater strainer in a vibration-free location. Never mount it on
the engine or transmission. Hoses must not be kinked or allowed to come in contact
with hot or moving engine or transmission parts.

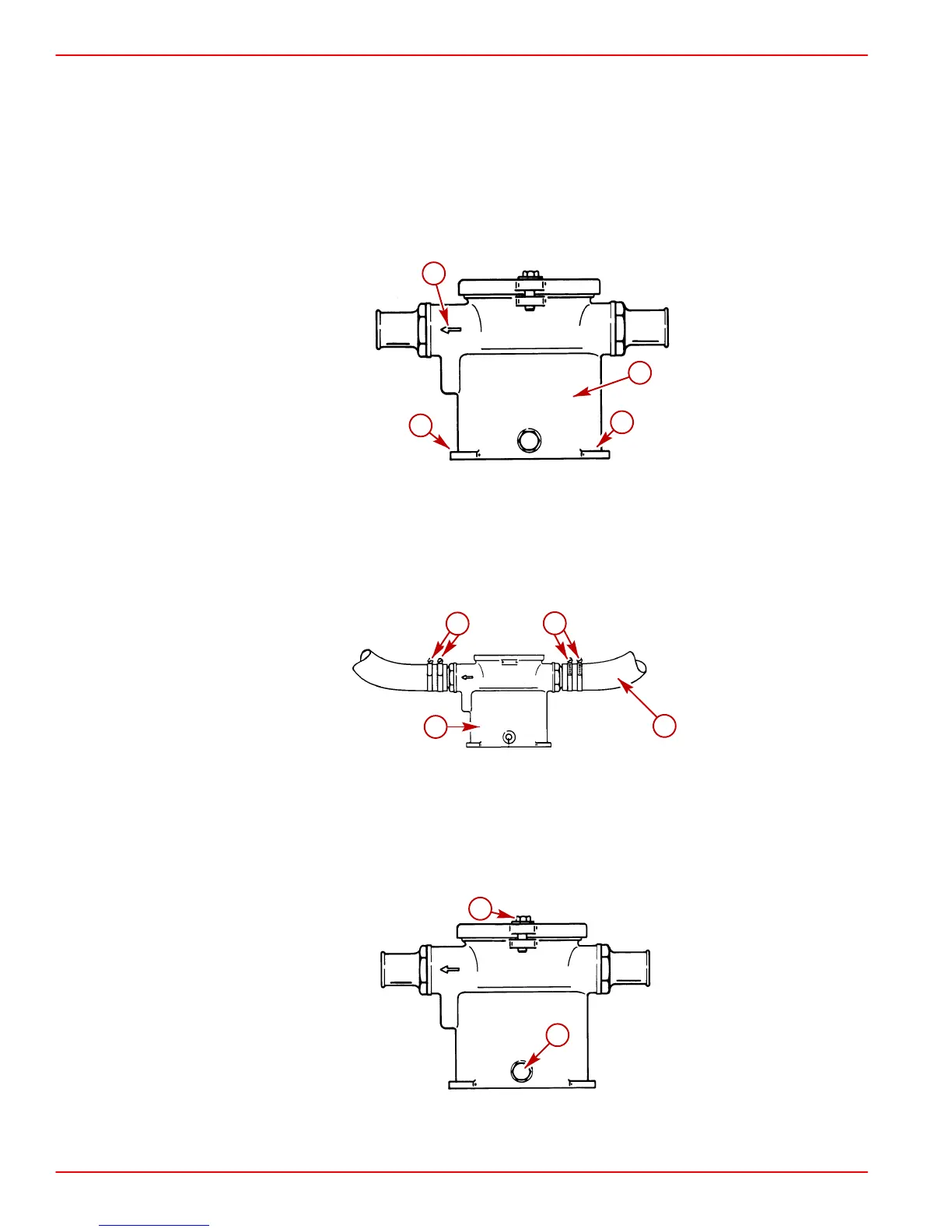

1. Mount seawater strainer. Ensure the following:
• Arrow (flow direction) must point towards seawater pump.
• Tighten mounting bolts securely.
50226
c
c
a
b
a-Strainer
b-Arrow
c-Mounting Bolt Hole
2. Install seawater inlet and outlet hoses. Use 2 hose clamps on each hose connection.
Tighten clamps securely.
50226
c
c
a
b
a-Inlet Hose
b-Strainer
c-Hose Clamps (2 Each)
3. Check drain plug and lens cover bolts. Tighten securely. Do NOT overtighten cover bolts
or cover may warp and leak water into boat.
50226
a
b
a-Drain Plug
b-Lens Cover Bolt
