SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22
Page 6A-38 90-860074--1 FEBRUARY 2002
3. Unplug and install port and starboard oil lines, as marked upon disassembly, to fittings
near each end of oil cooler.
4. Reconnect coolant recovery bottle hose.
5. Install the two large screw clamps retaining the heat exchanger to the port and starboard
brackets.
6. Reconnect turbocharger coolant vent hose.
74487
75297
c
d
a
c
b
d
e
f

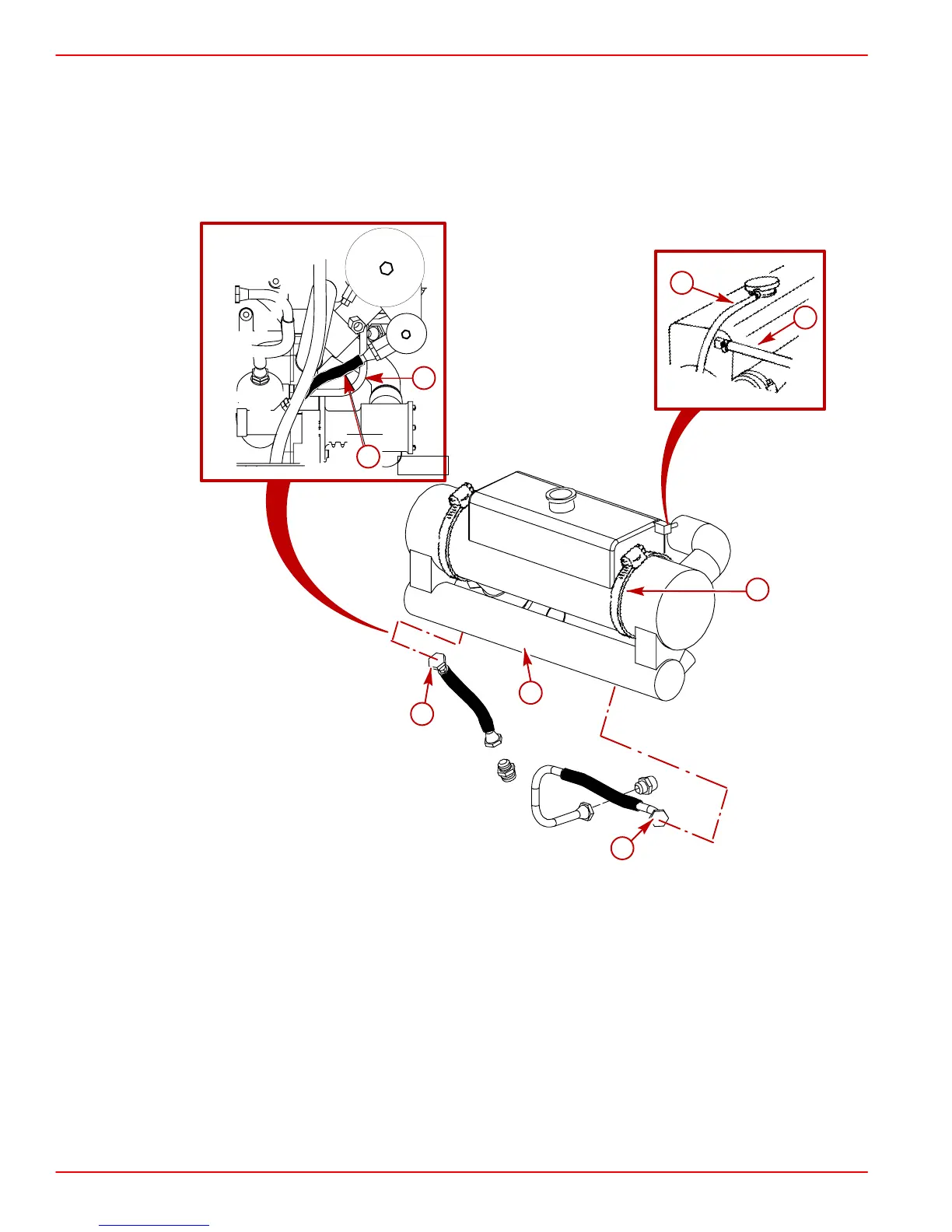

Engine Oil Cooler / Heat Exchanger and Related
a-Heat Exchanger / Oil Cooler
b-Starboard Oil Line And Fitting
c-Port Oil Line And Fitting
d-Turbocharger Coolant Vent Hose
e-Coolant Recovery Bottle Hose
f-Large Screw Clamps
To Next Page
