CLOSED COOLING SYSTEM
SERVICE MANUAL NUMBER 22
90-860074-1 FEBRUARY 2002 Page 6B-29
Installation
1. Apply a small amount of petroleum jelly on the brackets and hose ends to ease
installation.
2. Install the combination heat exchanger and engine oil cooler.
3. Make all necessary seawater and closed cooling hose connections.
74484
b
b
a
a
a
a
A
a

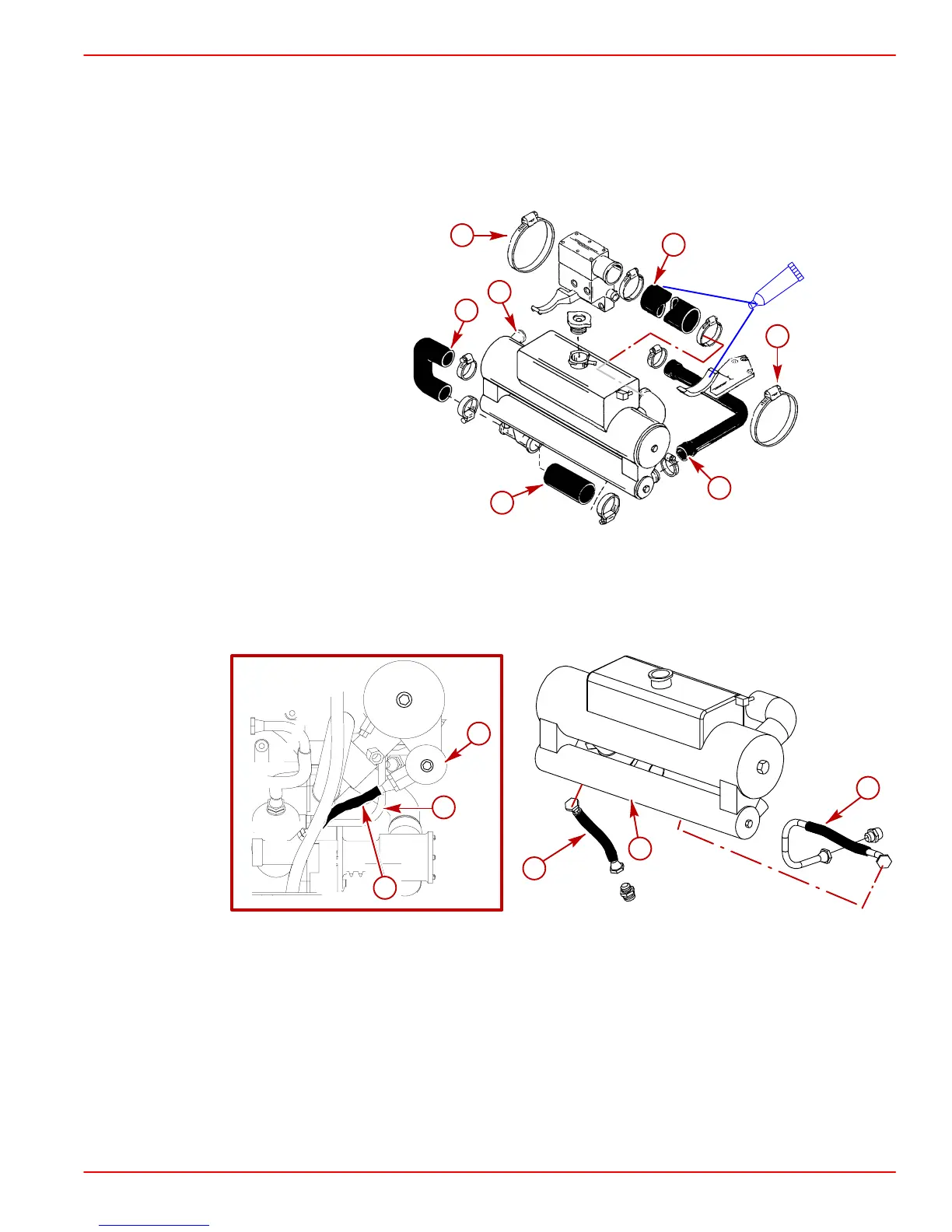

Engine Oil Cooler / Heat Exchanger and Related Components
a-Hoses
b-Clamps
4. Unplug and install port and starboard oil lines to fittings near each end of oil cooler.
b
a
75301
75297
b
c
c
a
a-Engine Oil Cooler
b-Starboard Oil Line And Fitting
c-Port Oil Line And Fitting
To Next Page
