INTERCOOLER SERVICE MANUAL NUMBER 22
Page 7A-12 90-860074--1 FEBRUARY 2002

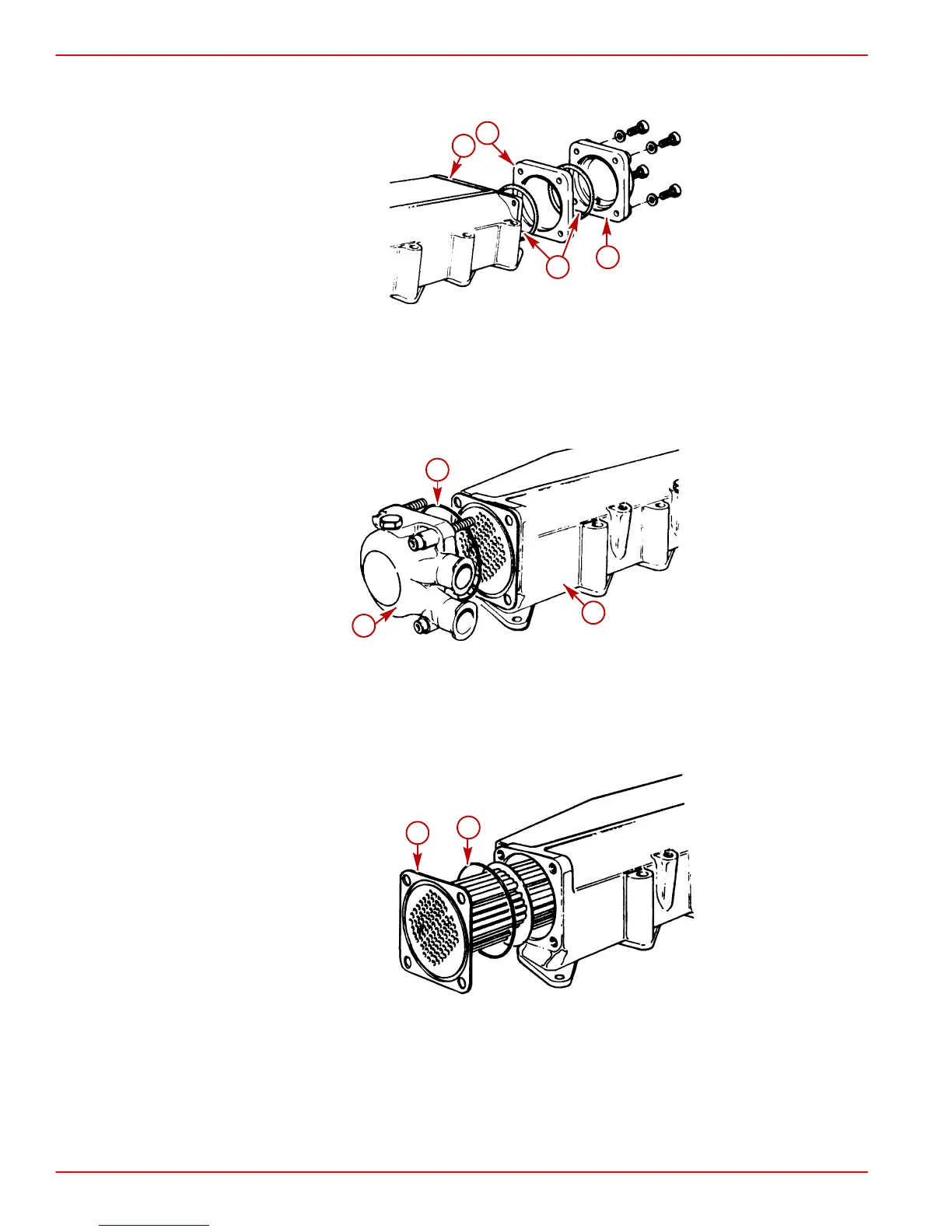

2. Remove rear cover. Note position of O-ring, and if equipped, plate and second O-ring
position.
70906
a
b
c
d
Typical
a-Intercooler Housing
b-Rear Cover
c-O-ring (Two - If Equipped)
d-Plate
3. Remove front cover and O-ring.
70907
c
a
b
a-Intercooler Housing
b-Front Cover
c-O-ring
4. Slide radiator insert out front of intercooler housing. Note position of O-ring.
70905
a
b
a-Radiator Insert
b-O-Ring
