INTERCOOLER SERVICE MANUAL NUMBER 22
Page 7A-18 90-860074--1 FEBRUARY 2002

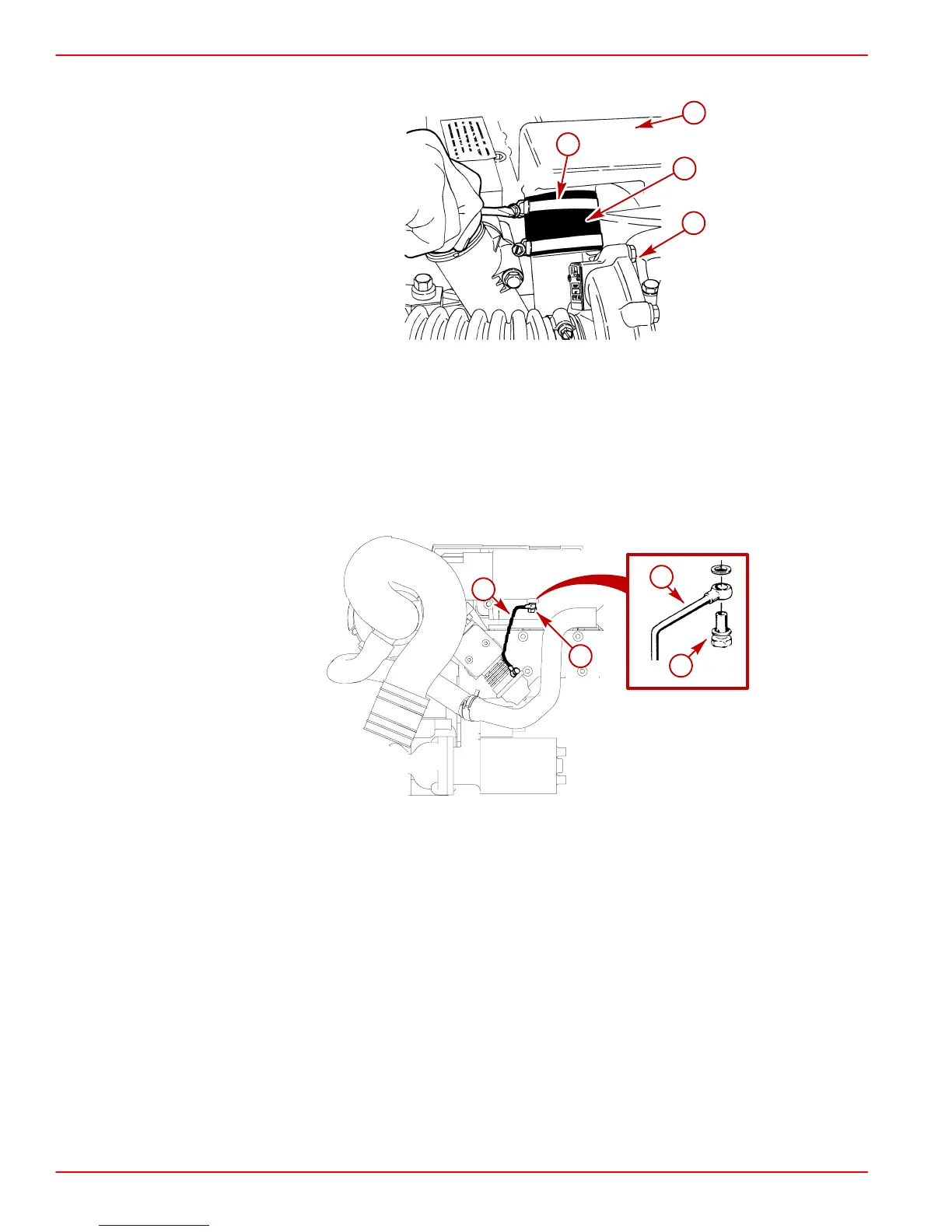

4. Securely tighten hose clamp at turbocharger-to-intake duct hose as shown.
70918
d
b
a
c
Typical
a-Hose
b-Hose Clamp
c-Turbocharger
d-Intake Duct
5. Connect wastegate valve pressure line using the hollow bolt with two new sealing
washers as shown. Tighten securely.
70916
73940
a
a
b
b
Sterndrive Shown (Inboard Similar)
a-Wastegate Valve Pressure Line
b-Hollow Bolt With Sealing Washers
To Next Page
