MANIFOLDS, ELBOWS AND RISERS SERVICE MANUAL NUMBER 22
Page 7B-12 90-860074--1 FEBRUARY 2002
Installation

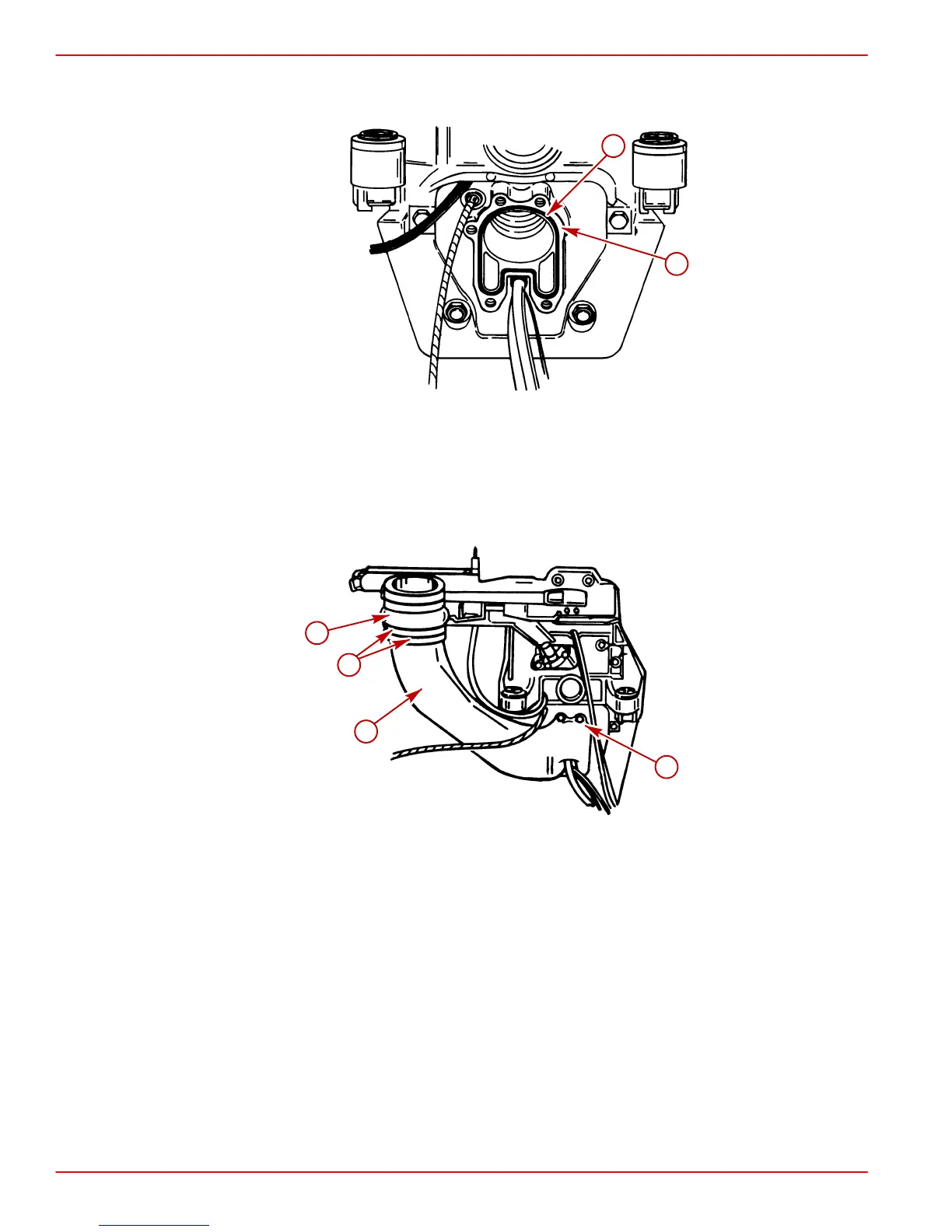

1. Install new O-ring. Be certain it is seated properly in groove of gimbal housing.
22030
b
a
a - Mating Surface (Gimbal Housing, Exhaust Pipe Similar)
b - O-ring
2. Hold exhaust pipe in position. Install the four thick washers and bolts. Torque evenly in
a diagonal pattern to 30 Nm (23 lb-ft).
3. Lubricate the inside of large end of exhaust hose with a soap and water solution. Slide
hose over exhaust pipe and install two hose clamps. Tighten hose clamps securely.
24841
c
d
a
a
a - Exhaust Pipe
b - Bolts And Thick Lockwashers (4)
c - Hose
d - Hose Clamps (2)
