TURBOCHARGER

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 7C-31

Valve

REMOVAL

1. Remove the two hollow bolt with sealing washers from pressure line on bottom of

intercooler housing as shown.

2. Remove the two hollow bolt with sealing washers from pressure line on valve as shown.

3. Remove pressure line.

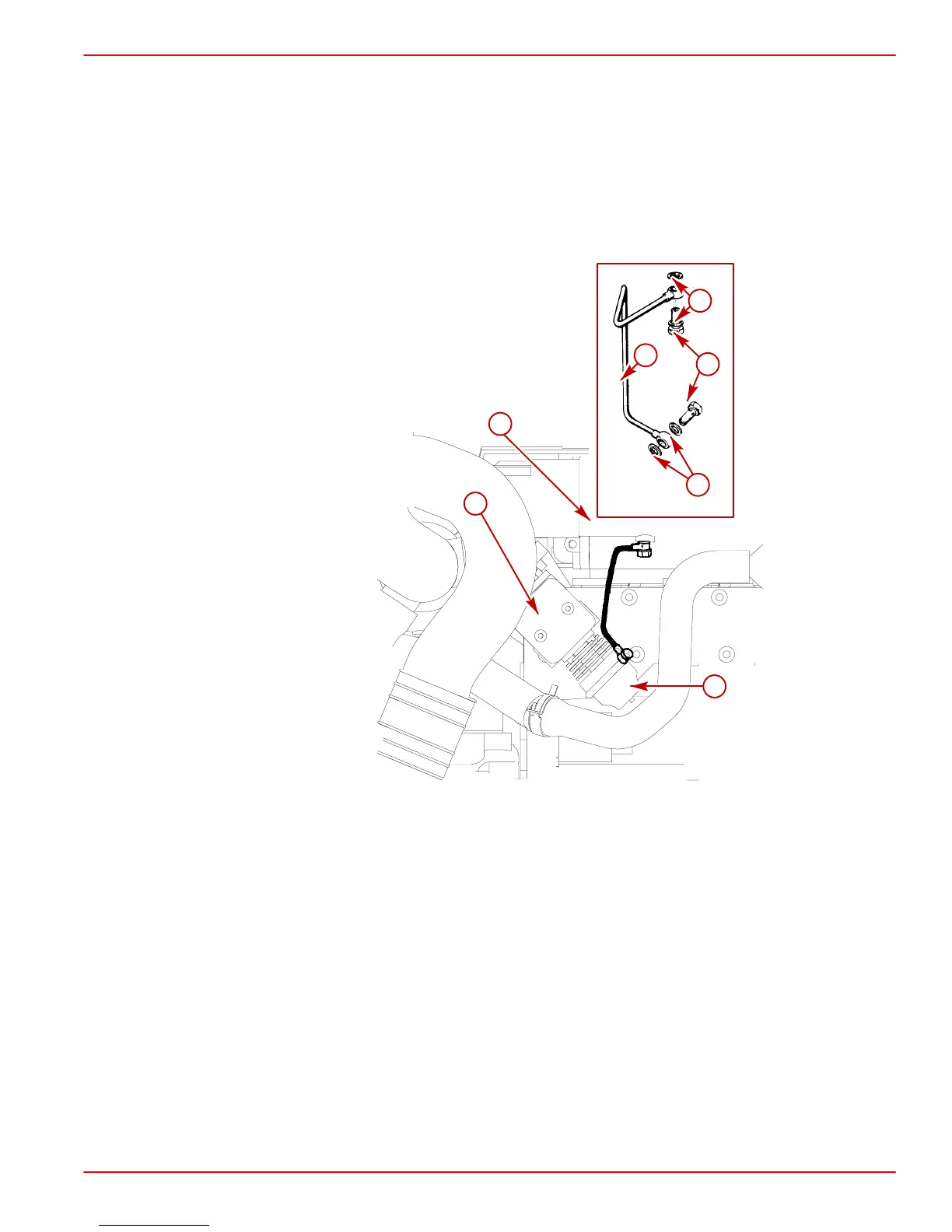

75297

70917

Typical

a-Hollow Bolts

b-Sealing Washers (2 Each)

c-Pressure Line

d-Intercooler Housing

e-Wastegate

f-Valve
