TURBOCHARGER SERVICE MANUAL NUMBER 22
Page 7C-34 90-860074--1 FEBRUARY 2002
INSTALLATION

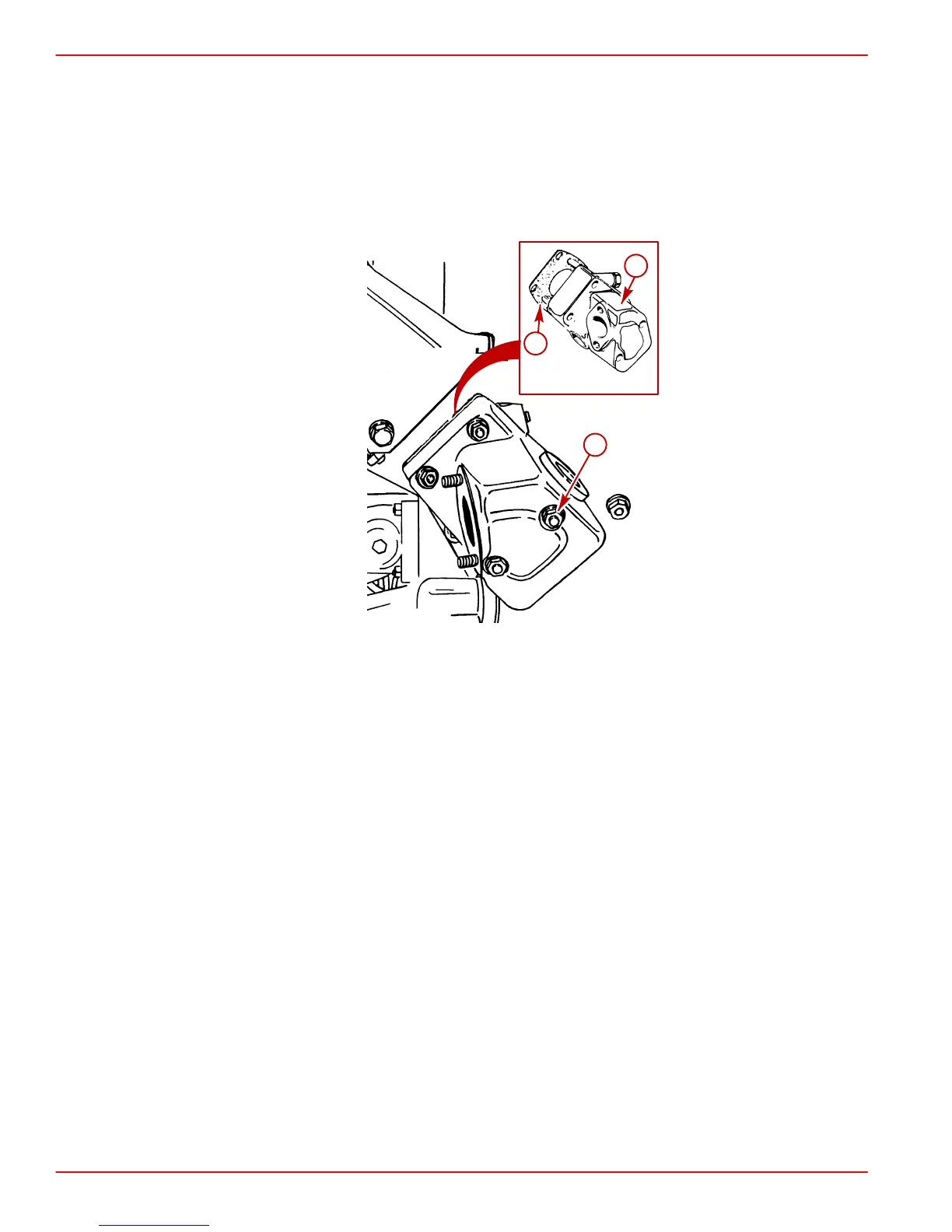

1. Using a new gasket install wastegate on exhaust manifold as shown. Securely tighten
the four fasteners with lockwashers.
2. Install the wastegate valve.
3. Install the wastegate exhaust pipe.
4. Install the exhaust elbow or riser.
71005
a
b
c
Typical
a-Wastegate
b-Gasket
c-Hex Nuts Or Screws, With Lockwashers (4)
5. Start the engine and check for leaks.
6. Test turbocharger boost pressure.
