ZF / HURTH TRANSMISSIONS

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 8A-11

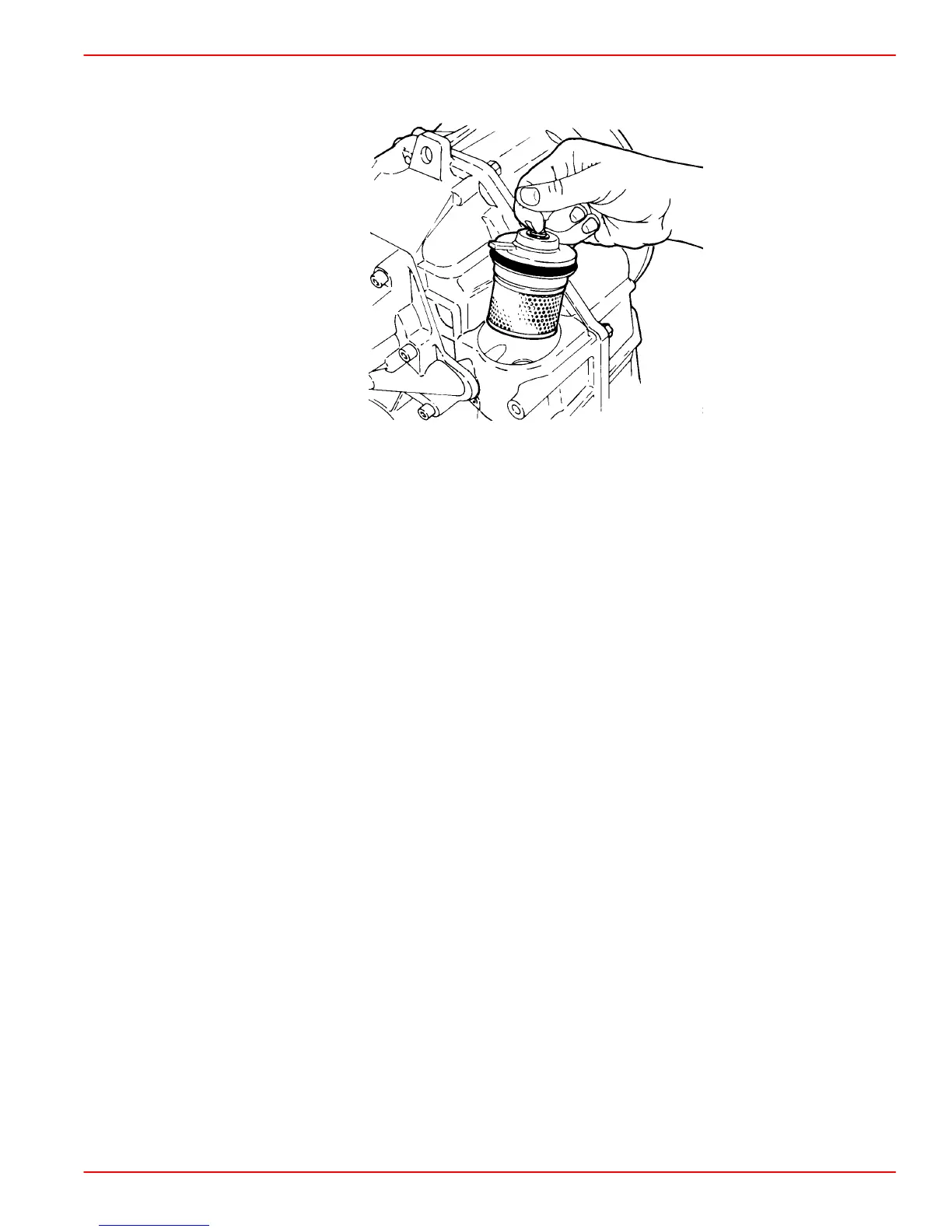

8. Install the fluid filter assembly in the transmission cavity by turning clockwise and

pushing at the same time.

27662

9. Fill the transmission with specified fluid.

10. Check the fluid level.
